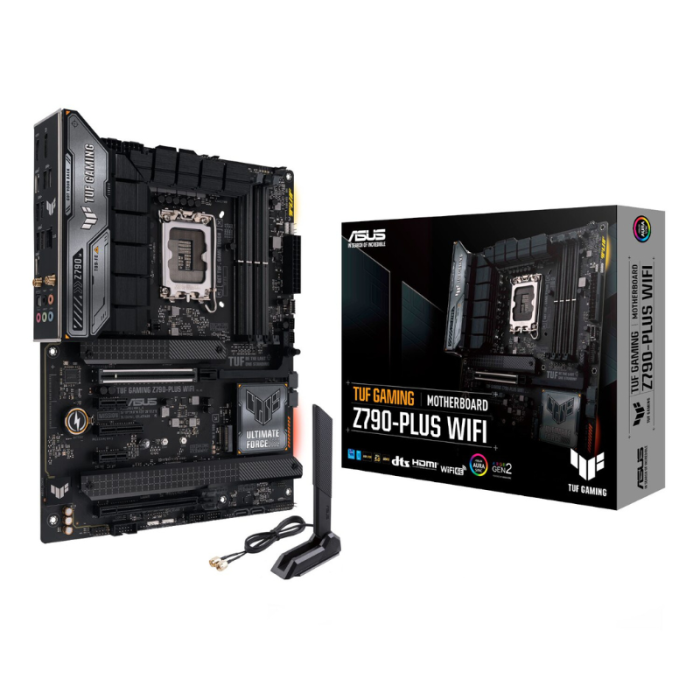

Asus TUF Gaming Z790-Plus Wi-Fi ATX Motherboard - Intel LGA1700, DDR5, PCIe 5.0. Wi-Fi 6E
Asus TUF Gaming Z790-Plus Wi-Fi ATX Motherboard - Intel LGA1700, DDR5, PCIe 5.0. Wi-Fi 6E
Engineered for durability, performance, and next-gen connectivity, the Asus TUF Gaming Z790-Plus motherboard brings together military-grade components, comprehensive cooling, and robust power delivery to support the latest 13th and 12th Gen Intel® Core™ processors. Built on the Intel® Z790 chipset, this ATX motherboard is ideal for gamers and PC enthusiasts who demand stability, speed, and future-proof features.
The Asus TUF Gaming Z790-Plus motherboard delivers enhanced DDR5 memory support, PCIe® 5.0 x16 graphics capability, and next-level storage with four M.2 slots, making it an optimal foundation for high-performance gaming builds. Designed for seamless networking, it integrates ultra-fast WiFi 6E, Intel® 2.5Gb Ethernet, and Bluetooth® v5.3, ensuring low-latency online gaming and fast file transfers.
Gamers benefit from Armoury Crate integration, two-way AI noise cancellation, and addressable RGB lighting for custom setups. Enhanced with reinforced PCIe SafeSlot and comprehensive fan controls, the ASUS TUF GAMING Z790 ensures operational reliability under intense gaming conditions. Whether you're building a new rig or upgrading an existing system, this motherboard offers the performance and resilience to elevate your gaming experience.
FEATURES:
Intel® Z790 chipset compatible with 13th and 12th Gen Intel® Core™, Pentium® Gold, and Celeron® processors on LGA1700 socket
16+1 DrMOS power stages, six-layer PCB, ProCool sockets, and military-grade TUF components
Next-gen performance DDR5 memory, PCIe® 5.0 x16 graphics, and high-speed storage with up to four M.2 slots
Integrated WiFi 6E, Intel® 2.5Gb Ethernet, and Bluetooth® v5.3
Enlarged VRM heatsinks, M.2 heatsinks, hybrid fan headers, and Fan Xpert 4 utility
Armoury Crate software for system control, device management, and real-time monitoring
Two-way AI noise cancellation for crystal-clear voice input
Addressable Gen 2 RGB headers and Aura Sync compatibility for personalisation
SafeSlot Core+ and stainless-steel back I/O for extended longevity and structural integrity
SPECIFICATIONS:
CPU
Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors
Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
Chipset: Intel® Z790 Chipset
Memory
4 x DIMM, Max. 192GB, DDR5 7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II
Graphics
1 x DisplayPort
1 x HDMI® port
Expansion Slots
Intel® Core™ Processors (14th & 13th & 12th Gen)
1 x PCIe 5.0 x16 slot
Intel® Z790 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
1 x PCIe 4.0 x4 slot
2 x PCIe 3.0 x1 slots
Storage
Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports
Intel® Core™ Processors (14th & 13th & 12th Gen)
M.2_1 slot (Key M), type 2242/2260/2280/22110
Intel® 13th & 12th Gen processors support PCIe 4.0 x4 mode
Intel® Z790 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
4 x SATA 6Gb/s ports
Ethernet
1 x Intel® 2.5Gb Ethernet
TUF LANGuard
Wireless & Bluetooth
Wi-Fi 6E
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band
Bluetooth® v5.3
USB
Rear USB (Total 8 ports)
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C®)
4 x USB 3.2 Gen 1 ports (4 x Type-A)
Front USB (Total 7 ports)
1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support an additional 4 USB 2.0 ports
Audio
Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC
Impedance sense for front and rear headphone outputs
Internal audio Amplifier to enhance the highest quality sound for headphones and speakers
Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
Supports up to 32-bit/192 kHz playback"
Audio Features
Audio Shielding
Rear optical S/PDIF out port
Premium audio capacitors
Dedicated audio PCB layers
Audio Cover
Back Panel I/O Ports
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C®)
4 x USB 3.2 Gen 1 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI® port
1 x Wi-Fi Module
1 x Intel® 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
Internal I/O Connectors
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
2 x 8-pin +12V Power connectors
Storage related
4 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support an additional 4 USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x 20-3-pin System Panel header with Chassis intrusion function
1 x Thunderbolt™ (USB4®) header
Special Features
ASUS TUF PROTECTION
DIGI+ VRM (- Digital power design with DrMOS)
ESD Guards
TUF LANGuard
Overvoltage Protection
Safeslot
Stainless-Steel Back I/O
ASUS Q-Design
M.2 Q-Latch
PCIe Slot Q-Release
Q-DIMM
Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
Q-Slot
ASUS Thermal Solution
M.2 heatsink
VRM heatsink design
ASUS EZ DIY
CPU Socket lever protector
ProCool
Pre-mounted I/O shield
SafeDIMM
AURA Sync
Aura RGB header
Addressable Gen 2 headers
Software Features
ASUS Exclusive Software
Armoury Crate
Aura Creator
Aura Sync
Fan Xpert 4 (with AI Cooling II)
Two-Way AI Noise Cancellation
Power Saving
AI Suite 3
TurboV EVO
DIGI+ VRM
PC Cleaner
TUF GAMING CPU-Z
DTS Audio Processing
MyAsus
Norton 360 for Gamers
WinRAR
UEFI BIOS
ASUS EZ DIY
ASUS CrashFree BIOS 3
ASUS EZ Flash 3
ASUS UEFI BIOS EZ Mode
BIOS: 192 (128+64) Mb Flash ROM, UEFI AMI BIOS
Manageability: WOL by PME, PXE
Operating System: Windows® 11, Windows® 10 64-bit
Form Factor:
ATX Form Factor
30.5 cm x 24.4 cm
WHAT'S IN THE BOX:
Asus TUF Gaming Z790-Plus Wi-Fi ATX Motherboard x1
SATA 6Gb/s cables x2
ASUS Wi-Fi moving antenna x1
TUF GAMING sticker x1
M.2 Rubber Packages x2
Screw package for M.2 SSD x1
TUF Certification card x1
User guide x1
