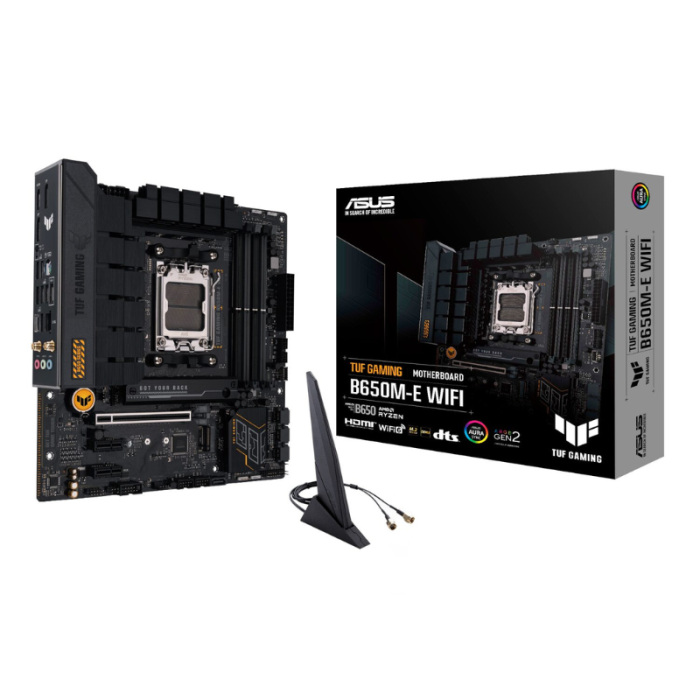

Asus TUF Gaming B650M-E WIFI Motherboard - AMD Ryzen
Asus TUF Gaming B650M-E WIFI Motherboard - AMD Ryzen
The Asus TUF Gaming B650M-E motherboard delivers the ideal balance of durability, performance, and next-gen connectivity for gamers and creators deploying AMD Ryzen 7000 Series processors. Engineered with military-grade components and enhanced power architecture, the board features an 8+2 power stage configuration rated at 60A, supported by enlarged VRM heatsinks to ensure unwavering stability under heavy workloads and marathon gaming sessions.
Optimised for speed, the ASUS TUF Gaming B650M supports PCIe® 5.0 M.2 slots and next-generation DDR5 memory, allowing users to unlock ultra-fast data access and seamless multitasking. With native support for USB 3.2 Gen 2 Type-C® and front-panel USB 3.2 Gen 1 Type-C®, connectivity is efficient and future-ready. Integrated WiFi 6 and 2.5 Gb Ethernet ensure stable, low-latency online performance for competitive gaming and high-speed transfers.
The Asus TUF Gaming B650M-E is designed to outlast and outperform. Every unit undergoes rigorous validation, including thermal shock, humidity, and voltage fluctuation testing, making it a reliable choice for demanding environments. The rugged, geometric off-black aesthetic further reinforces the TUF identity – built to perform, built to endure. Whether you’re building a compact battle station or a high-performance rig, the Asus TUF Gaming B650M-E empowers your build with exceptional stability, robust performance, and enduring style.
FEATURES:
Built for AMD Ryzen 7000 series to deliver high-end performance and efficiency
8+2 power stages (60A rated) ensure stable power delivery
PCIe® 5.0 M.2 slot offers ultra-fast storage speeds with support for next-gen NVMe SSDs
DDR5 memory support provides enhanced bandwidth and improved power efficiency
Wi-Fi 6 & 2.5 Gb Ethernet, reliable low-latency networking
USB 3.2 Gen 2 Type-C® back and front panel connectivity
Two-way AI noise cancellation minimises background noise
Enlarged VRM heatsinks and hybrid fan headers maintain system temperatures during intense operation
TUF durability testing for thermal, voltage, and environmental endurance
Off-black PCB with geometric accents reflects the strength and dependability of the TUF series
SPECIFICATIONS:
CPU:
Chipset: AMD B650
CPU Compatibility: AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
CPU Socket: LGA1700
Memory Support:
4 x DIMM slots, up to 192GB total
DDR5 7600+(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ / 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC and Non-ECC, Un-buffered Memory
Dual-Channel Memory Architecture
Supports AMD Extended Profiles for Overclocking (EXPO™) OptiMem II
Graphics:
1 x DisplayPort
1 x HDMI™port
Expansion Slots:
AMD Ryzen™ 9000 & 7000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x16 mode)
AMD Ryzen™ 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
AMD B650 Chipset
2 x PCIe 4.0 x1 slots
Storage:
Supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
AMD Ryzen™ 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
AMD Ryzen™ 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)
AMD B650 Chipset
4 x SATA 6Gb/s ports
Ethernet: 1 x Realtek 2.5Gb ethernet TUF LANGuard
Wireless & Bluetooth:
1x1 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
Bluetooth® v5.2 (2.4/5GHz)
USB:
Rear USB (Total 8 ports)
2 x USB 3.2 Gen 2 (10G) ports (1 x Type-A + 1 x USB Type-C®)
2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 7 ports)
1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Audio:
Realtek 7.1 Surround Sound High Definition Audio CODEC
Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
Supports up to 24-bit/192 kHz playback
Audio Features
Audio Shielding
Premium audio capacitors
Dedicated audio PCB layers
Back Panel I/O Ports:
2 x USB 3.2 Gen 2 (10G) ports (1 x Type-A + 1 x USB Type-C®)
2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
2 x DisplayPort
1 x HDMITM port
1 x Wi-Fi Module
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x BIOS FlashBack™ button
1 x PS/2 Keyboard/Mouse combo port
Internal I/O Connectors:
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
2 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C® )
1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x 20-3-pin System Panel header with Chassis intrude function
Special Features:
ASUS TUF PROTECTION
DIGI+ VRM (- Digital power design with DrMOS)
ESD Guards
TUF LANGuard
Overvoltage Protection
SafeSlot Core+
Stainless-Steel Back I/O
ASUS Q-Design
M.2 Q-Latch
Q-DIMM
Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
Q-Slot
ASUS Thermal Solution
M.2 heatsinks
VRM heatsink design
ASUS EZ DIY
BIOS FlashBack™ button
BIOS FlashBack™ LED
ProCool
Pre-mounted I/O shield
SafeSlot Core+
SafeDIMM
AURA Sync
Aura RGB header
Addressable Gen 2 headers
Software Features:
ASUS Exclusive Software
Armoury Crate
AURA Creator
AURA Sync
Fan Xpert 2+
Power Saving
Two-Way AI Noise Cancellation
AI Suite 3
TurboV EVO
DIGI+ VRM
PC Cleaner
TUF GAMING CPU-Z
DTS Audio Processing
MyASUS
Norton 360 for Gamers (60 Days Free Trial)
WinRAR
UEFI BIOS
ASUS EZ DIY
ASUS CrashFree BIOS 3
ASUS EZ Flash 3
ASUS UEFI BIOS EZ Mode
BIOS: 256 Mb Flash ROM, UEFI AMI BIOS
Manageability: WOL by PME, PXE
Operating System: Windows® 11, Windows® 10 64-bit
Form Factor:
Form Factor: mATX (micro-ATX)
Dimensions: (24.4 x 24.4 cm)
WHAT'S IN THE BOX:
Asus TUF Gaming B650M-E WIFI Motherboard - AMD Ryzen x1
SATA 6Gb/s cables x2
ASUS Wi-Fi moving antennas x1
TUF Gaming sticker x1
M.2 Rubber Package x1
Screw package for M.2 SSD x1
TUF Certification card x1
User guide x1
| SKU | TUFGAMINGB650M-EWIFI |
|---|---|
| Order Lead Time | 1 - 2 Working Days |
| Product Availability | Online Only |
