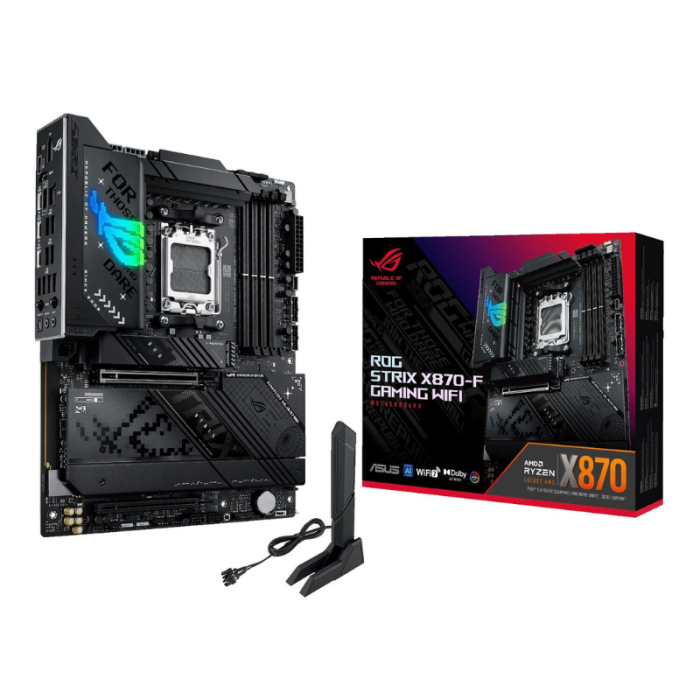

Asus ROG Strix X870-F Gaming WiFi Motherboard - ATX AMD AM5
Asus ROG Strix X870-F Gaming WiFi Motherboard - ATX AMD AM5
Unlock elite-level performance with the Asus ROG Strix X870-F Gaming Motherboard, the ultimate foundation for building high-end AMD gaming rigs. Engineered to harness the full potential of next-gen Ryzen processors, this cutting-edge motherboard is equipped with advanced power delivery, premium thermal management, and ultra-fast connectivity. It’s purpose-built for gamers, streamers, and PC enthusiasts who demand precision, speed, and stability.
The Asus ROG Strix X870-F Gaming Motherboard features robust 16+2 power stages and high-grade alloy chokes to ensure consistent power under pressure. It’s designed for AM5 processors and DDR5 memory, with support for PCIe 5.0 graphics and storage, offering blistering bandwidth and unparalleled responsiveness. Connectivity reaches new heights with built-in Wi-Fi 7, 2.5 Gb Ethernet, and native USB4 support, enabling lightning-fast data transfer and low-latency networking.
Aesthetically, the Asus ROG Strix X870-F Gaming Motherboard boasts bold cyberpunk accents, customisable RGB via Aura Sync, and a pre-mounted I/O shield for streamlined installation. AI-enhanced tools such as AI Overclocking, AI Cooling II, and AI Networking further optimise system performance in real time.
Whether you're pushing frame rates to the max or multitasking heavy workloads, the Asus ROG Strix X870-F Gaming Motherboard ensures you stay ahead of the game with uncompromising power, speed, and style.
FEATURES:
Supports next-gen AMD Ryzen™ processors for powerful performance
DDR5 memory support offers faster load times and increased bandwidth with next-gen memory architecture
16+2 power stages deliver stable and efficient power for overclocking and high-performance computing
PCIe 5.0 slots provide cutting-edge graphics cards and ultra-fast NVMe storage
WiFi 7 and 2.5 Gb Ethernet wireless and wired connectivity for seamless gaming and streaming
USB4 high-speed data transfers and versatile connectivity with native USB4 compatibility
AI overclocking, smart performance tuning, and AI cooling II thermal optimisation
Aura Sync offers customisable RGB lighting to personalise your gaming setup
Simplified installation with pre-mounted I/O Shield
Includes VRM heatsinks, high-conductivity thermal pads, and a large M.2 heatsink
Designed for immersive, high-fidelity gameplay with low latency and fast responsiveness
SPECIFICATIONS:
CPU
CPU Support: AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
Chipset: AMD X870
Memory
4 x DIMM slots, up to 256GB total
Supports up to 8000+MT/s(OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC, Un-buffered Memory
Dual-Channel Memory Architecture
Supports AMD Extended Profiles for Overclocking (EXPO™)
ASUS Enhanced Memory Profile (AEMP)
Graphics
1 x DisplayPort
1 x HDMI™ port
2 x USB4® (40Gbps) ports support USB Type-C® display outputs
Expansion Slots
AMD Ryzen™ 9000 & 7000 Series Desktop Processors
1 x PCIe 5.0 x16 slot (supports x16 mode)
AMD Ryzen™ 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
AMD X870 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
Storage
Supports 4 x M.2 slots and 2 x SATA 6Gb/s ports
AMD Ryzen™ 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
AMD Ryzen™ 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)
M.2_2 slot (Key M), type 2242/2260/2280/22110 (Not supported)
AMD X870 Chipset
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
2 x SATA 6Gb/s ports
Ethernet: 1 x Intel® 2.5Gb Ethernet, ASUS LANGuard
Wireless & Bluetooth
2x2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band
Supports Wi-Fi 7 320MHz bandwidth, up to 6.5Gbps transfer rate.
Bluetooth® v5.4
USB
Rear USB (Total 12 ports)
2 x USB4® (40Gbps) ports(2 x USB Type-C® with DP Alt mode)
6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C® with up to 30W PD Fast-charge)
4 x USB 5Gbps ports (4 x Type-A)
Front USB (Total 9 ports)
1 x USB 20Gbps connector (supports USB Type-C®)
2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Audio
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080*
Impedance sense for front and rear headphone outputs
Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
High-quality 120 dB SNR stereo playback output and 110 dB SNR recording input
Supports up to 32-bit/384 kHz playback on front panel"
Audio Features
SupremeFX Shielding Technology
Savitech SV3H712 AMP
Rear optical S/PDIF out port
Premium audio capacitors
Audio cover
Back Panel I/O Ports
2 x USB4® (40Gbps) ports (2 x USB Type-C® with DP Alt mode)
6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C® with up to 30W PD Fast-charge)
4 x USB 5Gbps ports (4 x Type-A)
1 x DisplayPort
1 x HDMI™ port
1 x Wi-Fi module
1 x Intel® 2.5Gb Ethernet
2 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
1 x Clear CMOS button
Internal I/O Connectors
Fan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan headers
Power Related
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connectors
Storage Related
4 x M.2 slots (Key M)
2 x SATA 6Gb/s ports
USB
1 x USB 20Gbps connector (supports USB Type-C®)
2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Alteration PCIe mode switch
1 x Chassis Intrusion header
1 x CPU Over-voltage jumper
1 x Front Panel Audio header (F_AUDIO)
1 x Start button
1 x 10-1 pin System Panel header
1 x Thermal Sensor header
Special Features
Extreme Engine Digi+
5K Black metallic capacitors
ASUS Q-Design
M.2 Q-Latch
M.2 Q-Release
M.2 Q-Slide
PCIe Slot Q-Release Slim (with PCIe SafeSlot)
Q-Antenna
Q-Dashboard
Q-DIMM
Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
Q-Slot
ASUS Thermal Solution
M.2 heatsink backplate
M.2 heatsink
ASUS EZ DIY
BIOS FlashBack™ button
BIOS FlashBack™ LED
Clear CMOS button
ProCool II
Pre-mounted I/O shield
SafeSlot
SafeDIMM
Aura Sync
Addressable Gen 2 headers
Software Features
ROG Exclusive Software
ROG CPU-Z
Dolby Atmos
ASUS Exclusive Software
Armoury Crate
AIDA64 Extreme (60-day free trial)
Aura Creator
Aura Sync
Fan Xpert 4 (with AI Cooling II)
GameFirst
HWiNFO
Power Saving
ASUS Driver Hub
ASUS GlideX
USB Wattage Watcher
TurboV Core
Adobe Creative Cloud (Free Trial)
Norton 360 for Gamers (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
AI Overclocking Guide
ASUS EZ DIY
ASUS CrashFree BIOS 3
ASUS EZ Flash 3
ASUS UEFI BIOS EZ Mode
ASUS MyHotkey
Dynamic OC Switcher
FlexKey
BIOS: 256 Mb Flash ROM, UEFI AMI BIOS
Manageability: WOL by PM, PXE
Operating System: Windows 11
Form Factor: ATX Form Factor
Dimensions: 30.5 x 24.4 cm
WHAT'S IN THE BOX:
Asus ROG Strix X870-F Gaming WiFi Motherboard - ATX AMD AM5 x1
SATA 6Gb/s cables x2
Thermal pad for M.2 22110 x1
ASUS WiFi Q-Antenna x1
Cable ties package x1
M.2 Q-Latch package x1
M.2 Q-Slide package x1
ROG key chain x1
ROG Strix stickers x1
M.2 rubber packages x4
Quick start guide x1
