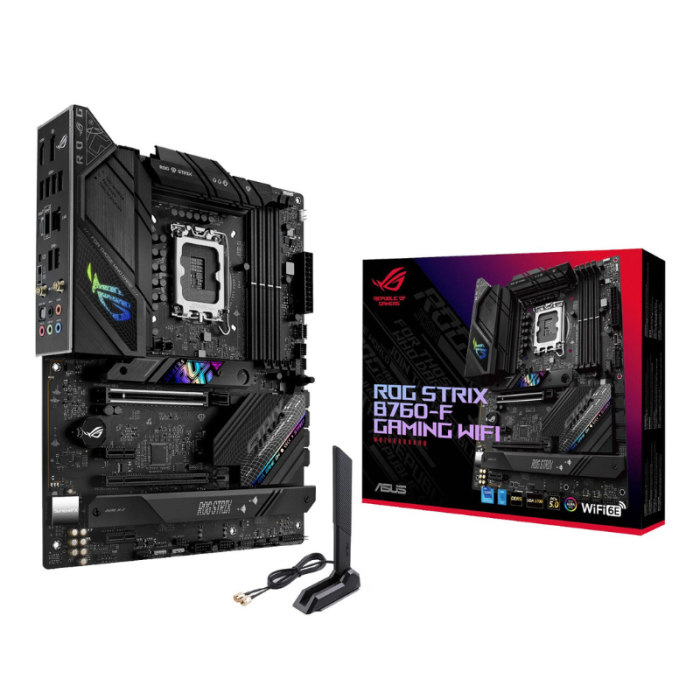

Asus ROG Strix B760-F Gaming WiFi Motherboard - Intel LGA1700
Asus ROG Strix B760-F Gaming WiFi Motherboard - Intel LGA1700
Engineered for uncompromising performance and seamless integration with next-gen hardware, the Asus ROG Strix B760-F Gaming WiFi motherboard is the ideal foundation for gamers, creators, and PC enthusiasts. Powered by the Intel B760 chipset and compatible with 12th, 13th and 14th Gen Intel Core processors, it supports the LGA1700 socket and unleashes the full potential of Intel’s hybrid architecture.
With support for up to 128GB of ultra-fast DDR5 memory across four DIMM slots, the Asus ROG Strix B760-F Gaming Motherboard ensures accelerated multitasking, faster data handling, and superior bandwidth. PCIe 5.0 x16 graphics support offers next-level performance for the latest GPUs, while three M.2 slots with PCIe 4.0 deliver rapid storage with reduced latency and higher throughput. WiFi 6E and Intel 2.5Gb Ethernet provide ultra-reliable, low-latency networking for competitive online gaming and streaming.
Enhanced cooling is assured via large VRM heatsinks, hybrid fan headers, and M.2 heatsinks that maintain system stability during high-load operations. Advanced connectivity includes rear USB 3.2 Gen 2x2 Type-C®, front USB Type-C®, and HDMI® 2.1 and DisplayPort 1.4 outputs for modern displays. The ROG Strix B760-F Gaming also incorporates intuitive features like Q-LED diagnostic indicators, BIOS FlashBack™, and a pre-mounted I/O shield for streamlined assembly and maintenance.
Designed with bold cyberpunk-inspired styling, premium components, and Aura Sync RGB lighting, the Asus ROG Strix B760-F Gaming delivers a visually immersive and technically advanced platform for next-gen PC builds.
FEATURES;
Intel B760 chipset with LGA1700 socket supports 12th,13th and 14th Gen Intel Core, Pentium Gold, and Celeron processors
Up to 128GB DDR5 memory support across 4 DIMM slots, delivering faster data rates and enhanced bandwidth
PCIe 5.0 graphics card compatibility enables ultra-fast GPU performance for high-end gaming and creative workloads
Triple M.2 slots with PCIe 4.0 ensure high-speed NVMe SSD support for lightning-fast storage access
Integrated WiFi 6E delivers faster wireless throughput and low-latency connectivity across 6GHz spectrum
Intel 2.5Gb Ethernet ensures stable, high-speed wired networking for competitive gaming
Advanced 16+1 power stages with robust capacitors and alloy chokes for stable CPU performance
Comprehensive cooling design includes large VRM heatsinks, M.2 heatsinks, and hybrid fan headers
USB 3.2 Gen 2x2 Type-C® supports fast data transfer and versatile peripheral connectivity
HDMI® 2.1 and DisplayPort 1.4 high-resolution and high refresh outputs
Q-LED diagnostic display and BIOS FlashBack™ simplify system troubleshooting and firmware updates
Pre-mounted I/O shield and PCIe Q-Release streamlines installation and upgrades
Customisable Aura Sync RGB lighting effects with support for multiple ARGB headers
Striking cyberpunk design aesthetics aligned with ROG’s bold and futuristic design language
SPECIFICATIONS:
CPU
Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
Chipset: Intel® B760 Chipset
Memory
4 x DIMM, Max. 192GB, DDR5 7800(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II
Graphics
1 x DisplayPort
1 x HDMI™ Port
Expansion Slots
Intel® Core™ Processors (14th & 13th & 12th Gen)
1 x PCIe 5.0x16 slot (supports x16 mode)
Intel® B760 Chipset
1 x PCIe 3.0 x16 slot (supports x4 mode)
2 x PCIe 3.0 x1 slots
Storage
Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
Intel® Core™ Processors (14th & 13th & 12th Gen)
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Intel® B760 Chipset
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 )
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 )
4 x SATA 6Gb/s ports
Ethernet: 1 x Intel® 2.5Gb Ethernet, ASUS LANGuard
Wireless & Bluetooth
Wi-Fi 6E
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band
Bluetooth® v5.3
USB
Rear USB (Total 8 ports)
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
1 x USB 3.2 Gen 2 port (1 x Type-A)
6 x USB 3.2 Gen 1 ports (6 x Type-A)
Front USB (Total 7 ports)
1 x USB 3.2 Gen 2 connector
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Audio
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
Impedance sense for front and rear headphone outputs
Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
High-quality 120 dB SNR stereo playback output and 110 dB SNR recording input
Supports up to 32-bit/384 kHz playback on front panel”
Audio Features
SupremeFX Shielding Technology
Savitech SV3H712 AMP
Rear optical S/PDIF out port
Premium audio capacitors
Audio cover
Back Panel I/O Ports
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
1 x USB 3.2 Gen 2 port (1 x Type-A)
6 x USB 3.2 Gen 1 ports (6 x Type-A)
1 x DisplayPort
1 x HDMI® port
1 x Wi-Fi Module
1 x Intel® 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
1 x Clear CMOS button
Internal I/O Connectors
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
Storage related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 2 connector (supports USB Type-C® )
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Front Panel Audio header (AAFP)
1 x 20-3-pin System Panel header with Chassis intrude function
1 x Thermal Sensor header
1 xThunderbolt™ (USB4®) header
Special Features
Extreme Engine Digi+
5K Black Metallic Capacitors
ASUS Q-Design
M.2 Q-Latch
PCIe Slot Q-Release
Q-DIMM
Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
Q-Slot
ASUS Thermal Solution
M.2 heatsink
VRM heatsink
ASUS EZ DIY
BIOS FlashBack™ button
BIOS FlashBack™ LED
Clear CMOS button
CPU Socket lever protector
ProCool
Pre-mounted I/O shield
SafeSlot
SafeDIMM
Aura Sync
Aura RGB header
Addressable Gen 2 headers
Software Features
ROG Exclusive Software
GameFirst VI
ROG CPU-Z
Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion
Sonic Radar III
DTS® Sound Unbound
ASUS Exclusive Software
Armoury Crate
AIDA64 Extreme (60-day free trial)
Aura Creator
Aura Sync
Fan Xpert 4
Power Saving
Two-Way AI Noise Cancellation
AI Suite 3
Performance And Power Saving Utility
DIGI+ VRM
PC Cleaner
MyAsus
Norton 360 for Gamers
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
MemTest86
BIOS: 256 Mb Flash ROM, UEFI AMI BIOS
Manageability: WOL by PM
Operating System: Windows® 11, Windows® 10 64-bit
Form Factor
ATX Form Factor
Dimensions: 30.5 x 24.4 cm
WHAT'S IN THE BOX:
Asus ROG Strix B760-F Gaming WiFi Motherboard - Intel LGA1700 x1
SATA 6Gb/s cables x2
Thermal pad for M.2 x1
ASUS Wi-Fi moving antennas x1
Cable ties package x1
M.2 Q-Latch package x1
M.2 Rubber Package x2
ROG key chain x1
ROG Strix stickers x1
ROG Strix thank you card x1
User guide x1
