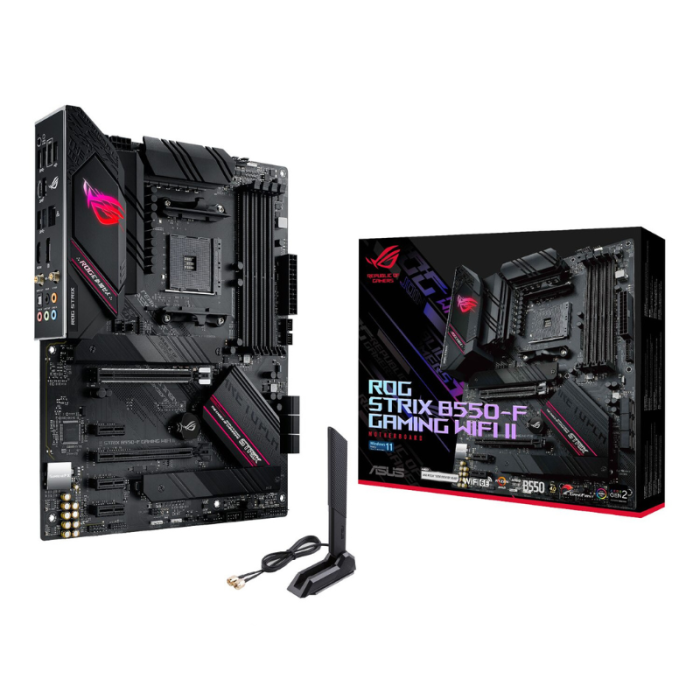

Asus ROG Strix B550-F Gaming WiFi Motherboard - AMD AM4

The ROG Strix B550-F Gaming Wi-Fi motherboard offers a refined balance of power, performance, and premium-grade features for serious gamers and PC builders. Built to support 3rd Gen AMD Ryzen™ processors, this ATX board is powered by a 12+2 DrMOS power stage design, alloy chokes, and durable capacitors, ensuring precise voltage regulation and system stability under load or during overclocking sessions.

Equipped with dual PCIe 4.0 M.2 slots, the ROG Strix B550-F Gaming enables ultra-fast data transfer rates with support for RAID configurations and the latest NVMe SSDs. Four DIMM slots offer support for up to 128GB of DDR4 memory, optimised for high-frequency performance. Intel® I225-V 2.5Gb Ethernet delivers low-latency wired networking, while integrated Intel® Wi-Fi 6 (802.11ax) ensures superior wireless speeds and responsiveness for online gameplay, streaming, and remote workloads.

SupremeFX S1220A audio with DTS® Sound Unbound and Sonic Studio III delivers high-definition audio, creating immersive in-game soundscapes. Intelligent software features such as AI Networking and Fan Xpert 4 simplify system management, while multiple hybrid fan headers, VRM heatsinks, and a PCH heatsink provide robust thermal control.

Connectivity is streamlined with USB 3.2 Gen 2 Type-A and Type-C ports, HDMI 2.1 and DisplayPort 1.2 outputs, and onboard Aura Sync RGB lighting with addressable headers for complete customisation. BIOS FlashBack™ allows safe firmware updates without a CPU, and the pre-mounted I/O shield ensures a clean, straightforward installation.

The ROG Strix B550-F Gaming Wi-Fi motherboard is an ideal foundation for high-performance AMD builds, offering future-ready architecture, aesthetic customisation, and comprehensive connectivity in one advanced solution.

FEATURES:

Dual M.2 slots support up to PCIe 4.0 speeds

12+2 DrMOS power stages and high-quality alloy chokes ensure stable power delivery

Integrated Wi-Fi 6 delivers next-gen wireless speeds with increased capacity and efficiency

AI networking and BIOS FlashBack™, streamlined connectivity and one-click BIOS recovery

Pre-mounted I/O shield and reinforced PCIe slot for simplified installation and enhanced durability

VRM and chipset heatsinks, hybrid fan headers, and Fan Xpert 4 ensure optimal thermal performance

Aura Sync offers customisable RGB lighting, and addressable Gen 2 headers allow synchronised lighting

SupremeFX audio technology provides immersive sound powered by high-fidelity components and DTS® Sound Unbound support

Specifications

SPECIFICATIONS:

CPU:

Chipset: AMD B550

CPU Compatibility: AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors

CPU Socket: AM4

Memory Support:

AMD Ryzen^TM 4000 G-Series Processors

4 x DIMM, Max. 128GB, DDR4 5100(O.C)/4800(O.C.)/4600(O.C)/4400(O.C)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz Memory

4 x DIMM, Max. 128GB, DDR4 4600(O.C)/4400(O.C)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory

OptiMem II

Dual Channel Memory Architecture

ECC Memory (ECC mode) support varies by CPU

Graphics:

1 x HDMI 2.1(4K@60HZ)

1 x DisplayPort 1.2

Multi-GPU Support: Supports AMD 2-Way CrossFireX Technology

Expansion Slots:

AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors

AMD B550 Chipset

1 x PCIe 3.0 x16 (x4 mode)

3 x PCIe 3.0 x1

1 x PCIe 3.0 x16 (x16 mode)

1 x PCIe 4.0 x16 (x16 mode)

Storage:

AMD Ryzen^TM 4000 G-Series Processors :

AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors :

1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)

Total supports 2 x M.2 slot(s) and 6 x SATA 6Gb/s ports

1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)

AMD B550 Chipset :

1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)

6 x SATA 6Gb/s port(s)

Support Raid 0, 1, 10

LAN:

Intel^® I225-V 2.5Gb Ethernet

ASUS LANGuard

Wireless & Bluetooth:

2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO

Supports dual band frequency 2.4/5 GHz

Supports channel bandwidth: HT20/HT40/HT80/HT160

Intel^® Wi-Fi 6 AX200

Bluetooth v5.1

USB:

Front USB (Total 6 ports)

Rear USB (Total 8 ports)

4 x USB 3.2 Gen 1 port(s)(4 x Type-A)

2 x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x USB Type-C^®)

2 x USB 3.2 Gen 1 port(s)

2 x USB 2.0 port(s)

4 x USB 2.0 port(s)

Audio:

ROG SupremeFX 7.1-Channel High Definition Audio CODEC S1220A

Optical S/PDIF in port(s) at the back panel

Dual OP Amplifiers

Impedance sense for front and rear headphone outputs

Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

High quality 120dB SNR stereo playback output and 113 dB SNR recording input

Supports up to 32-bit/192 kHz playback

Audio Features

SupremeFX Shielding™ Technology

Audio Shielding

Premium Japanese audio capacitors

Audio Cover

Back Panel I/O Ports:

1 x BIOS FlashBack^™ Button(s)

2 x USB 3.2 Gen 2 (1 x Type-A+1 x USB Type-C^®)

1 x Intel^® I225-V 2.5Gb Ethernet

4 x USB 3.2 Gen 1

1 x DisplayPort

1 x HDMI

2 x USB 2.0

1 x Optical S/PDIF out

ASUS Wi-Fi module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v5.0)

5 x Audio jack(s)

Internal I/O Connectors:

x AAFP connector

1 x M.2 Socket 1 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)

1 x M.2 Socket 2 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)

1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)

1 x Thunderbolt header(s)

1 x CPU Fan connector(s)

1 x CPU OPT Fan connector(s)

3 x Chassis Fan connector(s)

1 x AIO_PUMP connector

2 x Aura RGB Strip Header(s)

1 x Addressable Gen 2 header(s)

2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)

6 x SATA 6Gb/s connector(s)

1 x 24-pin EATX Power connector(s)

1 x 8-pin ATX 12V Power connector(s)

1 x 4-pin ATX 12V Power connector(s)

1 x System panel(s)

1 x Thermal sensor connector(s)

1 x Clear CMOS jumper(s)

Special Features:

Aura Sync

Standard RGB header(s)

Addressable Gen 2 RGB header(s)

ASUS Q-Design

ASUS Q-DIMM

ASUS Q-LED (DRAM [yellow], CPU [red], VGA [white], Boot Device [yellow green)

ASUS Q-Slot

ASUS Thermal Solution

Aluminium M.2 heatsink

ASUS EZ DIY

BIOS FlashBack™ button

BIOS FlashBack™ LED

Clear CMOS header

ProCool

Pre-mounted I/O shield

SafeSlot

Software Features:

ROG Exclusive Software

RAMCache III

ROG CPU-Z

GameFirst VI

Sonic Studio III + Sonic Studio Virtual Mixer

Sonic Radar III

DTS^® Sound Unbound

Overwolf

Anti-virus software

ASUS Exclusive Software Features

Armoury Crate

Aura Creator

Aura Sync

AI Noise-Cancelling Microphone

AI Suite 3:

PPSU

EPU

DIGI+ VRM

Fan Xpert 4

TurboV EVO

EZ update

WinRAR

UEFI BIOS

ASUS EZ DIY

ASUS CrashFree BIOS 3

ASUS EZ Flash 3

ASUS UEFI BIOS EZ Mode

BIOS: 256 Mb Flash ROM, UEFI AMI BIOS

Manageability: WOL by PME, PXE

Operating System: Windows® 10 64-bit

Form Factor:

Form Factor: ATX

Dimensions: (24.4 x 24.4 cm)

WHAT’S IN THE BOX:

Asus ROG Strix B550-F Gaming WiFi Motherboard - AMD A4 x1

M.2 SSD screw package(s) x1

M.2 Rubber Package(s) x1

Wi-Fi moving antenna x1

SATA 6Gb/s cable(s) x4

Supporting DVD x1

ROG Strix stickers x1

Cable ties pack(s) x1

Extension cable for Addressable LED x1

ROG Thank you card x1
