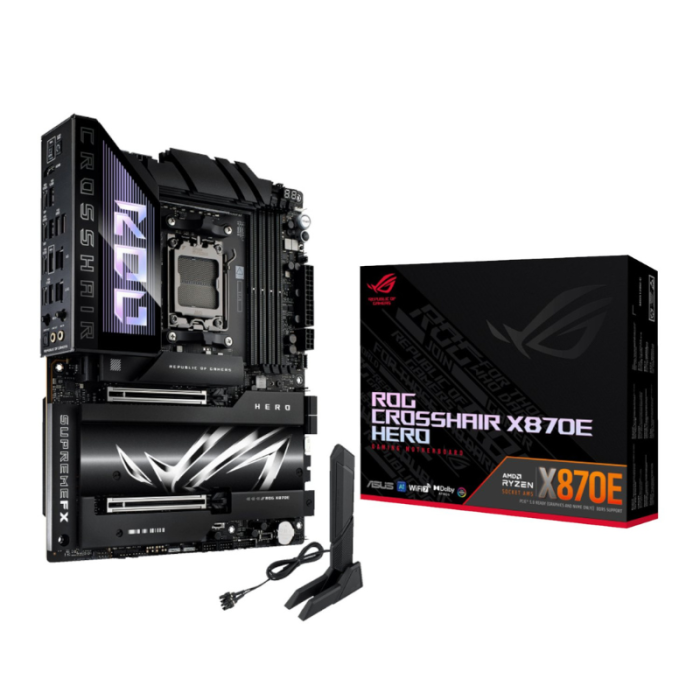

Asus ROG Crosshair X870E HERO ATX Gaming Motherboard
Asus ROG Crosshair X870E HERO ATX Gaming Motherboard
Unleash the full potential of AMD Ryzen™ 9000, 8000, and 7000 Series processors with the ASUS ROG Crosshair X870E HERO ATX Gaming Motherboard—a platform built for high-end overclocking, AI-enhanced performance, and future-proof connectivity. This AI PC-ready motherboard boasts an advanced 18+2+2 power stage design, featuring 110A-rated power stages and reinforced thermal solutions to ensure clean, stable power delivery under the most demanding workloads. Its signature Polymo Lighting II I/O shroud adds dynamic RGB brilliance to your rig, delivering not only elite performance but also unmistakable ROG style.
With Dynamic OC Switcher, users can seamlessly toggle between Precision Boost Overdrive and manual overclocks based on workload intensity, while Overclocking Load Guard prevents instability during extreme performance pushes. The Crosshair X870E HERO takes memory tuning further with support for DDR5 speeds up to 8600+ MT/s (OC), NitroPath DRAM Technology, and ASUS-exclusive Enhanced Memory Profile (AEMP) for PMIC-restricted DIMMs. DIMM Fit further ensures compatibility and stability by analyzing module characteristics for optimal configuration—making it ideal for overclockers, gamers, and creative professionals alike.
Built for speed, the motherboard offers five M.2 slots, including PCIe 5.0 support for next-gen NVMe SSDs, and dual PCIe 5.0 x16 slots for powerful GPU configurations. It features Wi-Fi 7, Realtek 5Gb and 2.5Gb Ethernet, and dual USB4® Type-C® (40Gbps) ports for ultrafast data transfers, along with front USB Type-C® with 60W Power Delivery for high-speed charging and device support. These high-performance specs are complemented by seamless Thunderbolt™ 4 video output, giving users the ability to connect external 8K displays or ultra-fast storage drives without compromise.
Thermal management is finely tuned with expansive VRM heatsinks, hybrid fan headers, and AI Cooling II, which intelligently balances noise and thermals with a single click. DIY builders will appreciate ASUS Q-Design for simplified assembly and error-free installation. Sync your RGB components using Aura Sync to achieve a cohesive visual setup, and enjoy pristine audio with ESS® ES9219 QUAD DAC and SupremeFX Shielding Technology. Whether you're chasing competitive edge, professional-grade production, or cutting-edge AI performance, the ROG Crosshair X870E HERO delivers unrivaled control and power for next-gen PC builds.
FEATURES:
Built for AMD Ryzen 9000,8000, and 7000 series to deliver high-end performance and efficiency
18(110A)+2(110A)+2(80A) Power Stages ensure stable power delivery
PCIe® 5.0 M.2 slots offer ultra-fast storage speeds with support for next-gen NVMe SSDs
DDR5 memory support provides enhanced bandwidth and improved power efficiency
Wi-Fi 7, 2.5GB, and 5Gb Ethernet, reliable low-latency networking
USB4® (40Gbps) Type-C® rear ports and front panel Type-C port with 60W PD power connectivity
ASUS Q-Design and EZ PC DIY for easily connecting and customizing your hardware
I/O Zone Polymo Lighting II for a unique lighting experience
AI Networking II and AI Cooling II Technologies
SPECIFICATIONS:
Socket: AM5
CPU: Supports AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
Chipset: AMD X870E Chipset
DDR5 Memory: Support DDR5 up to 8200+MT/s(OC) with Ryzen™ 9000 Series Processors, 8600+MT/s(OC) with Ryzen™ 8000 Series Processors, 8000+MT/s(OC) with Ryzen™ 7000 Series Processors, ECC and Non-ECC, Un-buffered Memory, supports AMD Extended Profiles for Overclocking (EXPO™), supports ASUS Enhanced Memory Profile (AEMP), NitroPath DRAM Technology
Memory Channel: Dual
DIMM Slots: 4
Max Memory (GB): 256
PCI-E 5.0 x16: 2
SATA 6G: 4
M.2 Slot: 5
LAN: 1 x Realtek 2.5Gb Ethernet, 1 x Realtek 5Gb Ethernet, ASUS LANGuard
Wireless and Bluetooth: Wi-Fi 7, 2×2 Wi-Fi 7 (802.11be), Supports 2.4/5/6GHz frequency band, Bluetooth v5.4
USB Ports Rear:
2 x USB4® (40Gbps) ports (2 x USB Type-C®)
8 x USB 10Gbps ports (6 x Type-A + 2 x USB Type-C®)
USB Ports Front:
1 x USB 20Gbps (supports USB Type-C® with up to 60W PD/QC4+)*
1 x USB 20Gbps connector (supports USB Type-C®)
2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
USB Type-C® power delivery output: max. 5V/3A
Audio ports (Rear): ESS® ES9219 QUAD DAC, SupremeFX Shielding Technology, Gold-plated audio jacks, Rear optical S/PDIF out port
HDMI: 1
USB4® (40Gbps): 2
DirectX: 12
Form Factor: ATX
Operating System: Support for Windows® 11
WHAT'S IN THE BOX:
Asus ROG Crosshair X870E HERO ATX Gaming Motherboard – Black x1
SATA 6Gb/s Cables x4
Asus Wi-Fi Q-Antenna x1
Q-connector x1
M.2 Q-Latch package x2
M.2 Q-Slide package x3
M.2 rubber package x5
ROG Bottle Opener x1
USB drive with utilities and drivers x1
Quick Start Guide x1
SKU | ROGCROSSHAIRX870EHERO |
---|---|
Order Lead Time | 1 - 2 Working Days |
Product Availability | Online Only |
