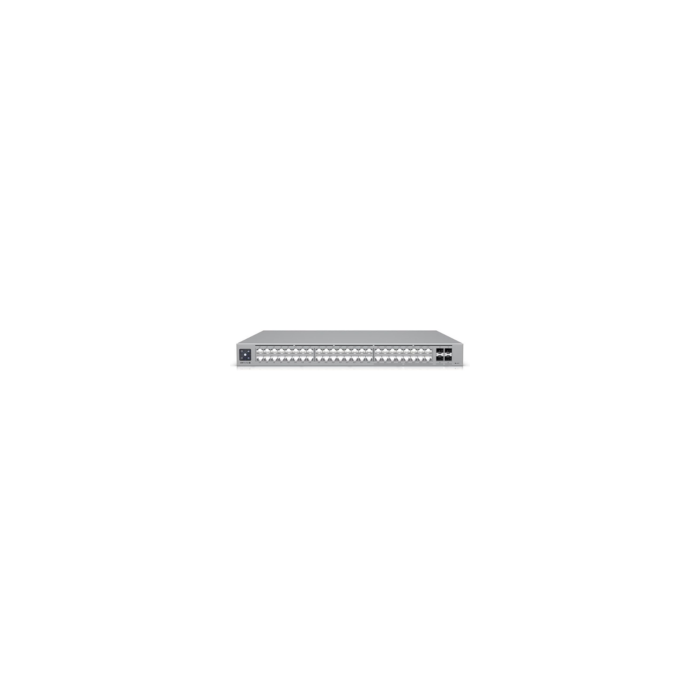

Ubiquiti Pro Max 48 port PoE GbE Managed Switch with 4x SFP+ Ports
Ubiquiti Pro Max 48 port PoE GbE Managed Switch with 4x SFP+ Ports
Ubiquiti's USW-PRO-MAX48P is a 48 port, fully managed, Layer 3 Etherlighting™ switch. The unit features a 720W PoE budget with 32 Gigabit PoE Ports (24x PoE+ and 8x PoE++), 16x 2.5Gbps PoE ports (8x PoE+ and 8x PoE++) and 4x SFP+ uplink Ports. This configuration makes provision for 2.5Gbps PoE links to your WiFi 6 devices as well as 10Gbps fibre uplinks to your network.
Features
Etherlighting ports that illuminate to indicate port location, speed/link, and native VLAN/network*
16x 2.5 GbE ports including 8x PoE+ and 8x PoE++
32x GbE ports including 24x PoE+ and 8x PoE++
4x 10G SFP+ ports
DC power backup ready
720W total PoE availability
Managed with UniFi Network 8.0.24 and later
Dimensions
| 442 x 325 x 44 mm (17.4 x 12.8 x 1.7") |
Port Layout
1 GbE RJ45 | 32 (24 PoE+; 8 PoE++) (1G/100M/10M) |
2.5 GbE RJ45 | 16 (8 PoE+; 8 PoE++) (2.5G/1G/100M/10M) |
10G SFP+ | 4 (10G/1G) |
Max. PoE Output | Up to PoE++ |
Total PoE Availability | 720W |
Redundancy | DC Power Backup |
Layer 3 | ✓ |
Form Factor | Rack mount (1U) |
Etherlighting™ | ✓ |
Hardware
PoE Ports | |
PoE+ | 32 |
PoE++ | 16 |
Max. PoE Wattage per Port by PSE | |
PoE | 15.4W |
PoE+ | 32W |
PoE++ | 64W |
Max. Power Consumption | 100W (Excluding PoE Output) 820W (Including PoE Output) |
Power Method | (1) Universal input, 100–240V AC, 50/60 Hz (1) USP RPS DC input |
Power Input Method | AC input |
Power Supply | AC/DC, internal, 550W |
Supported Voltage Range | 100–240V AC |
Management | Ethernet AR |
Heat Dissipation | 341.2 BTU/hr (Excluding PoE Output) |
Weight | Without mounting brackets: 5.1 kg (11.3 lb) With mounting brackets: 5.2 kg (11.5 lb) |
Enclosure Material | SGCC steel |
Mount Material | SGCC steel |
Supported Rack Depth | 400~1200 mm (15.7-47.2") |
LCM Display | 1.3" touchscreen |
ESD Protection | Air: ± 16kV, contact: ± 12kV |
Ambient Operating Temperature | -5 to 40° C (23 to 104° F) |
Ambient Operating Humidity | 10 to 90% noncondensing |
Etherlighting™ | |
Ethernet | ✓ |
SFP+ | ✓ |
NDAA Compliant | ✓ |
Certifications | CE, FCC, IC, Anatel: 06374-24-08356 |
Performance
Switching Capacity | 224 Gbps |
Total Non-Blocking Throughput | 112 Gbps |
Forwarding Rate | 167 Mpps |
Supported VLANs | 1,000 |
MAC Address Table Size | 32,000 |
L3 Table Size | |
ARP Entries | 12,000 |
IPv4 Routes | 12,000 |
IPv4 Static Routes | 256 |
Packet Buffer Size | 2 MB |
Access Lists | |
IPv4 | 128 |
MAC | 128 |
Layer 3 Features
DHCP Server (Local Networks) | ✓ |
DHCP Relay | ✓ |
Inter-VLAN Routing (Local Networks) | ✓ |
Static Routing (Local Networks) | ✓ |
Layer 2 Features
LACP Port Aggregation | ✓ |
STP & RSTP | ✓ |
QoS (DSCP) | ✓ |
Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron) | ✓ |
Advanced IGMP Configuration (Querier, Fast Leave, Router Port) | ✓ |
ARP Entries | ✓ |
IPv4 Static Routes | ✓ |
Packet Buffer Size | ✓ |
IGMP Snooping | ✓ |
802.1X Control | ✓ |
MAC-Based ACLs & Device Isolation | ✓ |
DHCP Snooping & Guarding | ✓ |
Egress Rate Limit | ✓ |
Flow Control | ✓ |
Storm Control | ✓ |
Multicast & Broadcast Rate Limiting | ✓ |
MAC Address Blocking | ✓ |
IP-Based ACLs & Network Isolation | ✓ |
MAC-Based Port Restriction | ✓ |
Port Isolation | ✓ |
Port Mirroring | ✓ |
Jumbo Frames | ✓ |
LLDP-MED | ✓ |
Voice VLAN | ✓ |
Loop Protection | ✓ |
Virtual Network Override | ✓ |
Software
Application Requirements | |
UniFi Network | Version 8.0.24 and later |
Package Contents
1x | Ubiquiti Pro Max 48 port PoE GbE Managed Switch with 4x SFP+ Ports |
| SKU | USW-PRO-MAX-48-POE |
|---|---|
| Order Lead Time | 2 - 4 Working Days |
| Product Availability | Online Only |
