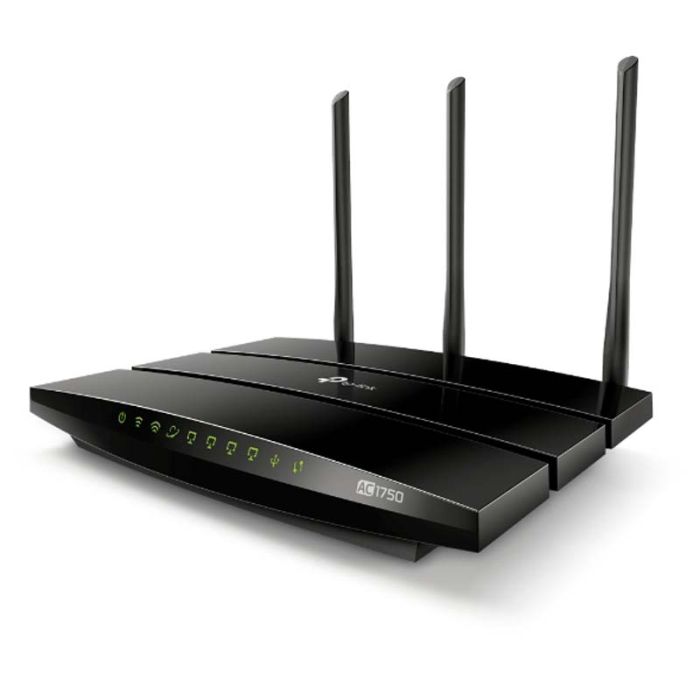

TP-Link Archer C7 AC1750 Wireless MU-MIMO Router - Black
TP-Link Archer C7
AC1750 Wireless MU-MIMO Router
The New Wi-Fi Standard for an Advanced Online Experience
The Archer C7 is a fast 802.11ac router with incredible range. It's better than many routers that are twice as expensive. This advanced Wi-Fi is designed for high-traffic online activities and can help to run applications at triple the speed of the previous 802.11n standard.
Concurrent Dual Band Connections for Lag-Free Work and Entertainment
The Archer C7 operates both the 2.4GHz and 5GHz bands, ensuring amazing wireless performance. Simple tasks like sending e-mails or web browsing can be handled by the 2.4GHz band while bandwidth intensive tasks like online gaming or HD video streaming can be processed by the 5GHz band – all at the same time.

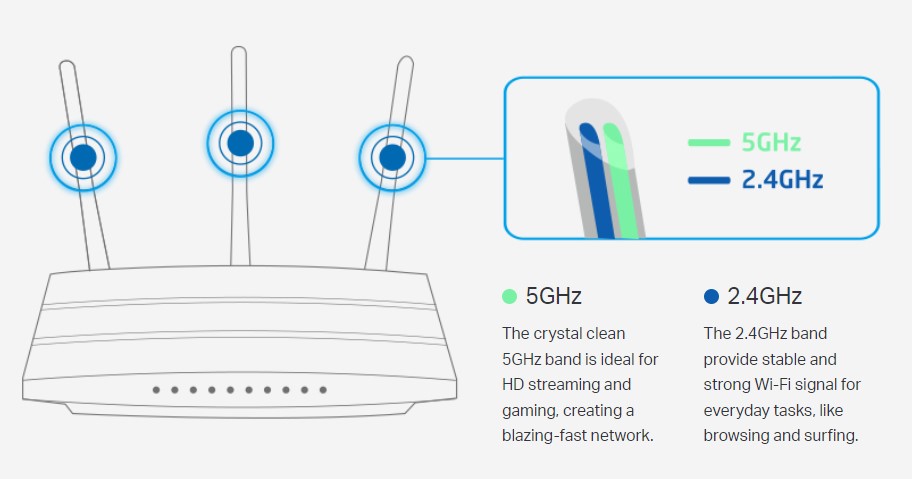

External Antennas with Dual Band Wi-Fi Greatly Expand Wireless Coverage
Three external antennas with advanced connection technology allow you to maintain impressive speeds. With antennas serving both the 2.4GHz and 5GHz band, you can enjoy incredible wireless coverage and reliability in any part of your large home or office.

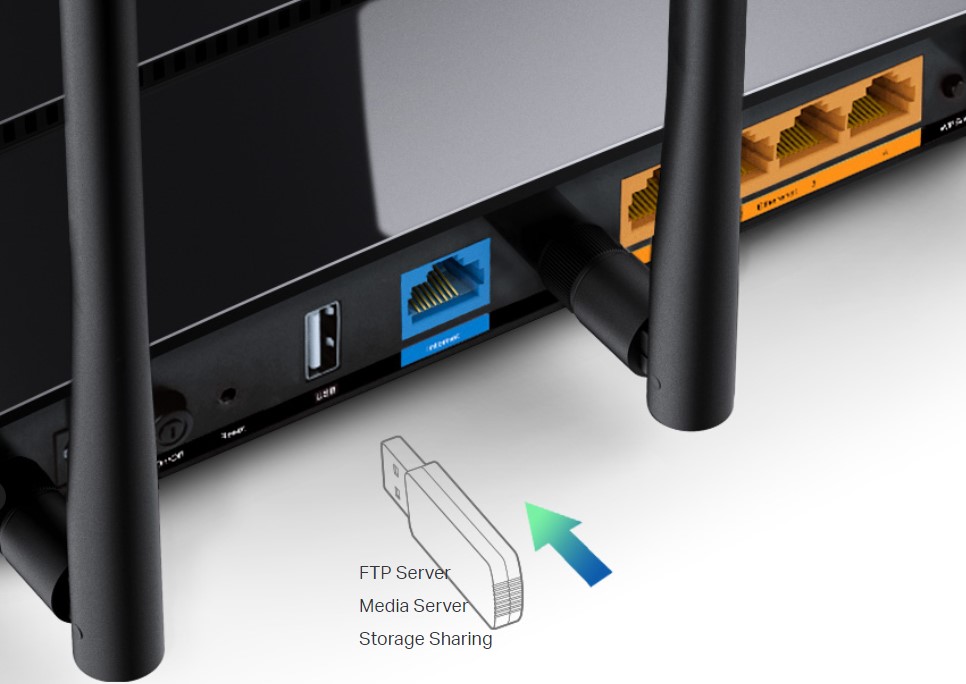

Versatile USB Connectivity
A USB 2.0 port makes the Archer C7 a truly resourceful gateway. Share a hard drive full of media through your home network, or via an ftp server whenever you’re away.

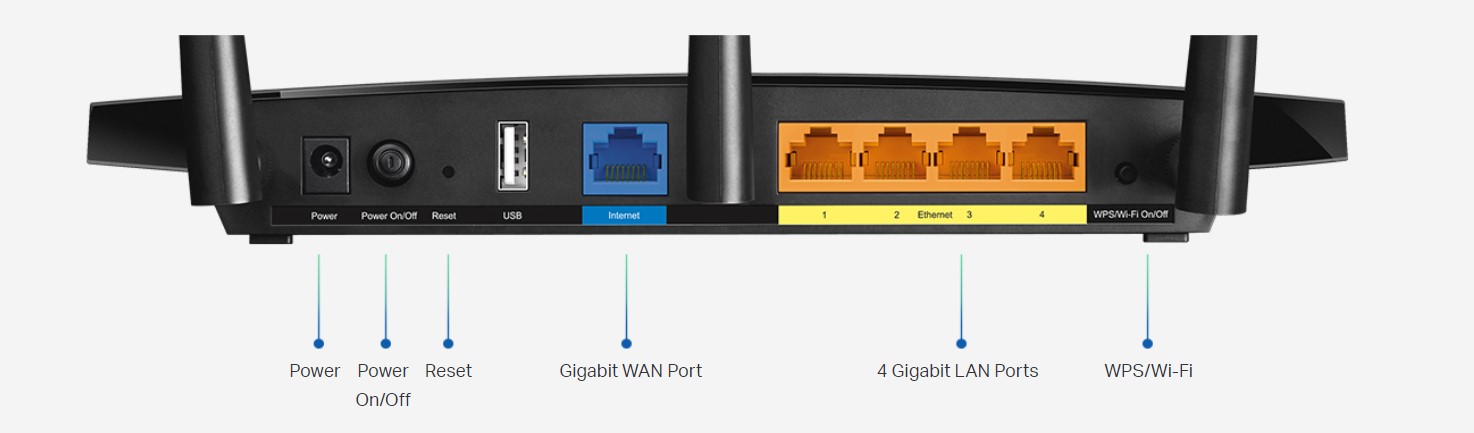

Full Gigabit Wired Connections for Ultrafast Data Transfer Speeds
With one Gigabit WAN port and four Gigabit LAN ports, speeds can be up to 10× faster than standard Ethernet connections.
The Archer C7 is a powerful hub to support a robust and extremely fast wired network.
Features:
Archer C7 AC1750 Wireless Dual Band Gigabit Router

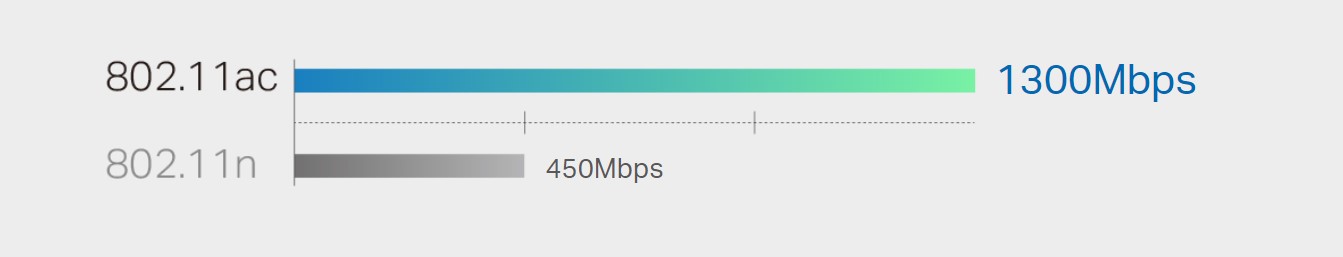

Supports 802.11ac standard - 3 times faster than wireless N speeds
Simultaneous 2.4GHz 450 Mbps and 5GHz 1300 Mbps connections for 1.75Gbps of total available bandwidth
USB Port - easily shares files & media with networked devices or remotely via FTP server
Guest Network Access - provides secure Wi-Fi access for guests sharing your home or office network
Easy setup and management with Tether App
WIRELESS | |
|---|---|
Standards | Wi-Fi 5 IEEE 802.11ac/n/a 5 GHz IEEE 802.11n/b/g 2.4 GHz |
WiFi Speeds | AC1750 5 GHz: 1300 Mbps (802.11ac) 2.4 GHz: 450 Mbps (802.11n) |
WiFi Range | 3 Bedroom Houses 3× Fixed High-Performance Antennas Multiple antennas form a signal-boosting array to cover more directions and large areas |
WiFi Capacity | Medium Dual-Band Allocate devices to different bands for optimal performance |
Working Modes | Router Mode Access Point Mode |
HARDWARE | |
|---|---|
Processor | Qualcomm CPU |
Ethernet Ports | 1× Gigabit WAN Port 4× Gigabit LAN Ports |
USB Support | 1× USB 2.0 Port Supported Partition Formats: NTFS, FAT32 Supported Functions: FTP Server Media Server Samba Server |
Buttons | Wi-Fi On/Off Button Power On/Off Button WPS/Reset Button |
Power | 12 V ⎓ 1.5 A |
SECURITY | |
|---|---|
WiFi Encryption | WPA WPA2 WPA/WPA2-Enterprise (802.1x) |
Network Security | SPI Firewall Access Control IP & MAC Binding Application Layer Gateway |
Guest Network | 1× 5 GHz Guest Network 1× 2.4 GHz Guest Network |
VPN Server | OpenVPN PPTP |
SOFTWARE | |
|---|---|
Protocols | IPv4 IPv6 |
OneMesh™ | OneMesh™ Supported Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products. Learn More> All OneMesh Products> |
Parental Controls | URL Filtering Time Controls |
WAN Types | Dynamic IP Static IP PPPoE PPTP L2TP |
Quality of Service | QoS by Device |
Cloud Service | OTA Firmware Upgrade TP-Link ID DDNS |
NAT Forwarding | Port Forwarding Port Triggering DMZ UPnP |
IPTV | IGMP Proxy IGMP Snooping Bridge Tag VLAN |
DHCP | Address Reservation DHCP Client List Server |
DDNS | TP-Link NO-IP DynDNS |
Management | Tether App Webpage Check Web Emulator> |
OTHER | |
|---|---|
System Requirements | Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser Cable or DSL Modem (if needed) Subscription with an internet service provider (for internet access) |
Certifications | FCC, CE, RoHS |
Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
TEST DATA | |
|---|---|
WiFi Transmission Power | CE: <20dBm(2.4GHz) <23dBm(5GHz) FCC: <30dBm |
WiFi Reception Sensitivity | 5GHz: 11a 6Mbps-96dBm 11a 54Mbps: -79dBm 11ac HT20: -71dBm 11ac HT40: -66dBm 11ac HT80: -63dBm 2.4GHz: 11g 54M: -77dBm 11n HT20: -74dBm 11n HT40: -72dBm |
PHYSICAL | |
|---|---|
Dimensions (W×D×H) | 9.6 × 6.4 × 1.3 in (243 × 160.6 × 32.5 mm) |
Package Contents | Wi-Fi Router Archer C7 Power Adapter RJ45 Ethernet Cable Quick Installation Guide |
