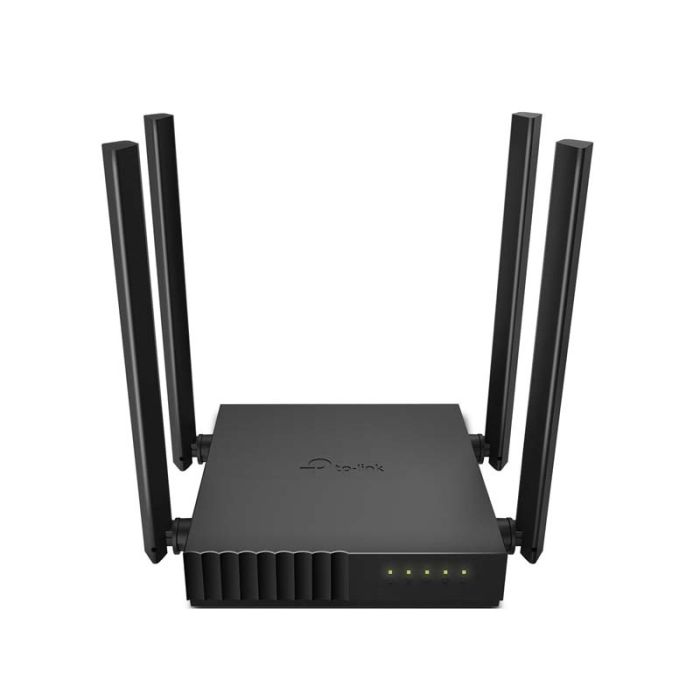

TP-Link Archer C54 AC1200 Dual Band Wi-Fi Router - Black
TP-Link Archer C54 AC1200 Dual Band Wi-Fi Router
Family Wi-Fi. Palm-Sized.
AC1200 Dual Band WiFi Router
Fast Dual-Band WiFi
Dual-band Wi-Fi allows you to connect your demanding devices to the faster and clearer 5 GHz band, while a tradition 2.4 GHz band provides a far-reaching, stable connection to the rest of your devices.

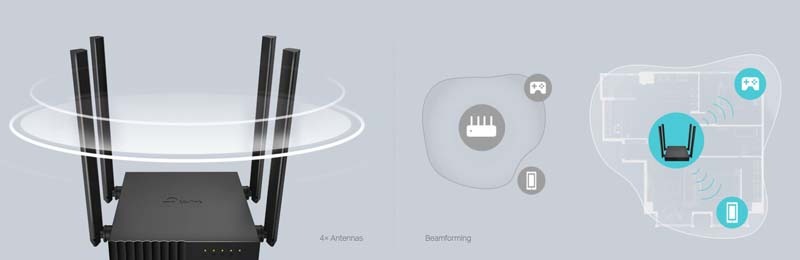

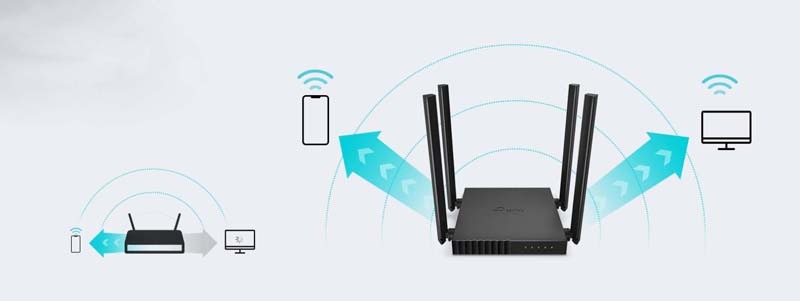

Boosted Signal throughout Your Home
Access your entertainment from every corner of your home with 4 external high-performance antennas. Beamforming technology detects devices and concentrates wireless signals towards them, even if they are far away or low-powered.
Talk to Devices Simultaneously
Equipped with MU-MIMO technology to connect more devices and maintain low latency. Concurrent streamings on 2 different MU-MIMO devices now will just be smooth as connecting only one, as long as you have enough bandwidth from your ISP.
Multi-Mode 3 in 1

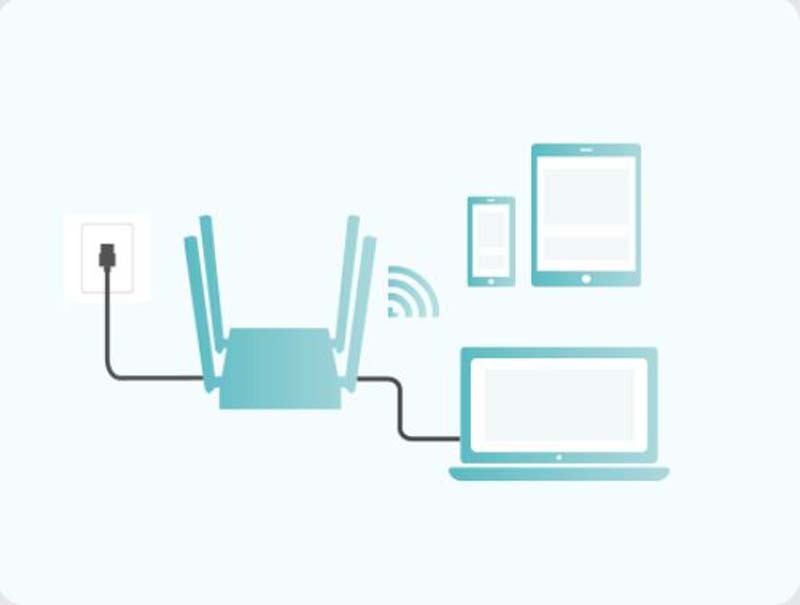

Router Mode (Default)
Plug in an Ethernet cable to instantly create a private wireless network and share internet access with all your Wi-Fi devices.
Access Point Mode
Transform your existing wired network into a wireless one.

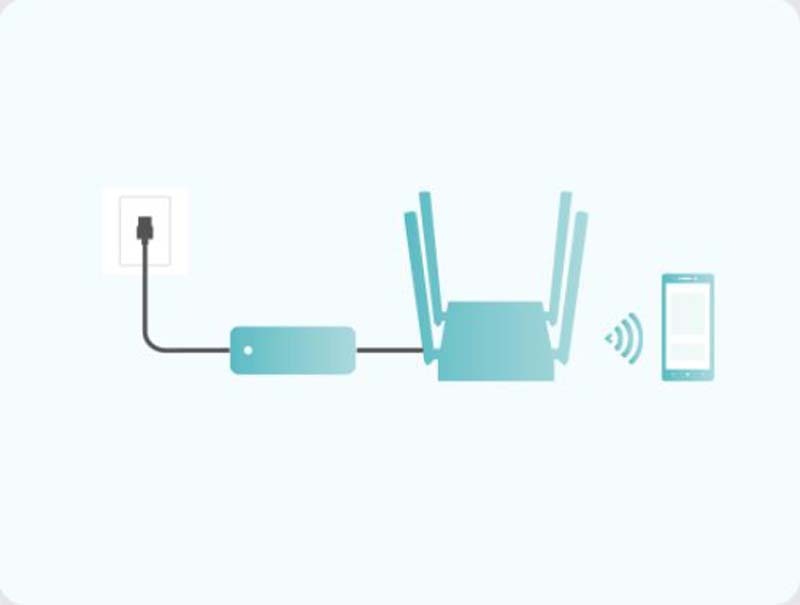

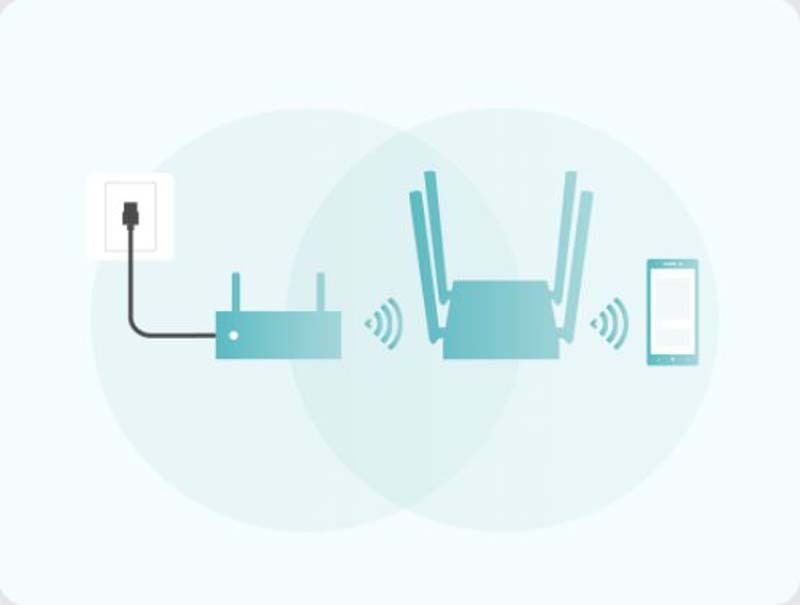

Range Extender Mode
Boost the existing wireless coverage in your house.

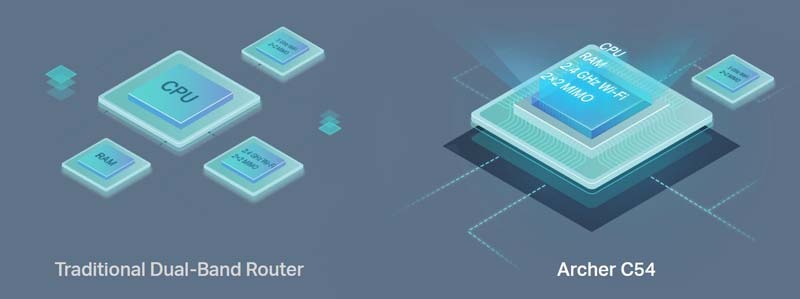

High Integration, Compact Size
Archer C54's system structure focuses on creating optimal WiFi. The advanced semiconductor technology helps integrate units including CPU, memory, and multi-stream processing unit onto a single chip to achieve high compatibility, bringing you the same power with a compact design.

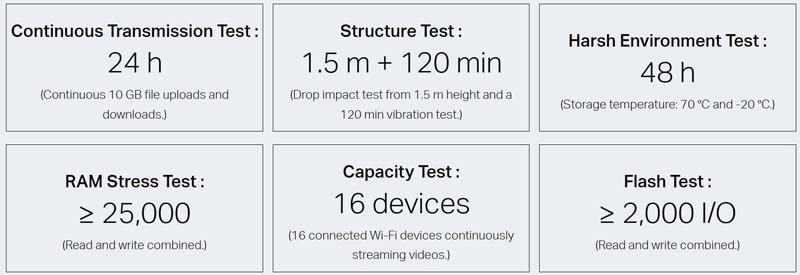

As Stable as a Larger One
Archer C54 goes through rigorous repeated testing to ensure a final product reliable under serveral strenuous environments. The final result: 8 randomly selected Archer C54 routers collectively tested for 1,936 hours.

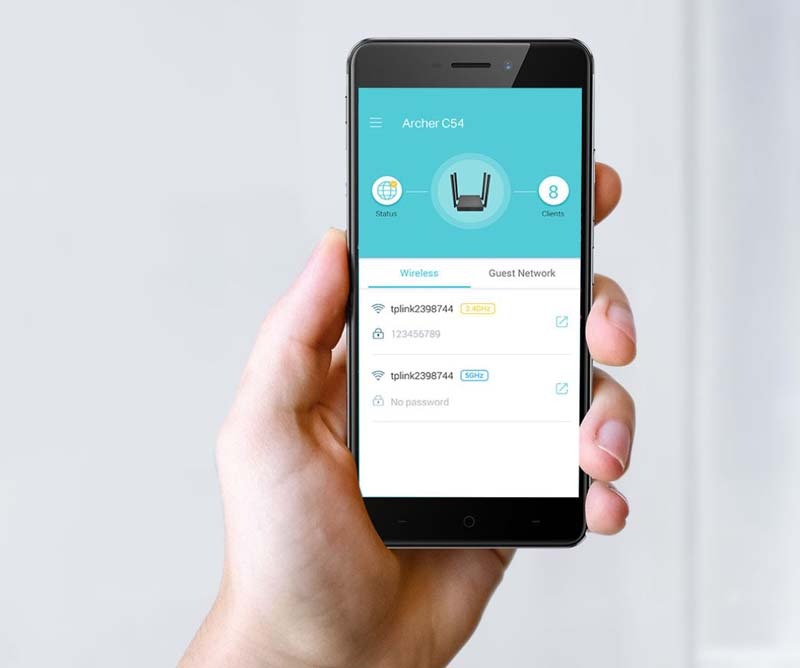

Easy Setup at Your Fingertips
Set up Archer C54 in minutes via its intuitive web interface or the powerful Tether app. Tether also lets you manage its network settings from any Android or iOS device.
Specifications
WIRELESS
Standards and Protocols
Wi-Fi 5
IEEE 802.11ac/n/a 5 GHz
IEEE 802.11n/b/g 2.4 GHz
WiFi Speeds
AC1200
5 GHz: 867 Mbps (802.11ac)
2.4 GHz: 300 Mbps (802.11n)
WiFi Range
3 Bedroom Houses
4× Fixed Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas
Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range
WiFi Capacity
Medium
Dual-Band
Allocate devices to different bands for optimal performance
MU-MIMO
Simultaneously communicates with multiple MU-MIMO clients
Working Modes
Router Mode
Access Point Mode
Range Extender Mode
SECURITY
Network Security
SPI Firewall
Access Control
IP & MAC Binding
Application Layer Gateway
Guest Network
1× 5 GHz Guest Network
1× 2.4 GHz Guest Network
WiFi Encryption
WPA
WPA2
WPA3
WPA/WPA2-Enterprise (802.1x)
HARDWARE
Processor
Single-Core CPU
Ethernet Ports
1× 10/100 Mbps WAN Port
4× 10/100 Mbps LAN Ports
Buttons
WPS/Reset Button
Power
9 V ⎓ 0.85 A
SOFTWARE
Protocols
IPv4
IPv6
Parental Controls
URL Filtering
Time Controls
WAN Types
Dynamic IP
Static IP
PPPoE
PPTP
L2TP
Quality of Service
QoS by Device
NAT Forwarding
Port Forwarding
Port Triggering
DMZ
UPnP
IPTV
IGMP Proxy
IGMP Snooping
Bridge
Tag VLAN
DHCP
Address Reservation
DHCP Client List
Server
DDNS
NO-IP
DynDNS
Management Features
Tether App
Webpage
OTHER
System Requirements
Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or another JavaScript-enabled browser
Cable or DSL Modem (if needed)
Subscription with an internet service provider (for internet access)
Certifications
FCC, CE, RoHS
Environment
Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Storage Temperature: -40℃~60℃ (-40℉ ~140℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
TEST DATA
WiFi Transmission Power
CE EIRP:
<20dBm(2.4GHz)
<23dBm(5GHz)
FCC:
<30dBm (2.4GHz & 5GHz)
WiFi Reception Sensitivity
5GHz:
11a 6Mbps: -93dBm.
11a 54Mbps: -78dBm.
11ac HT20 mcs8:69dBm.
11ac HT40 mcs9: -66dBm.
11ac HT80 mcs9: -62dBm.
2.4GHz:
11g 54Mbps: -78dBm.
11n HT20 mcs7: -74dBm.
11n HT40 mcs7: -71dbm.
PHYSICAL
Dimensions (W×D×H)
4.5 × 4.2 × 1.0 in
(115 × 106.7 × 24.3 mm)
What’s in the box
1x Wi-Fi Router Archer C54
1x Power Adapter
1x RJ45 Ethernet Cable
1x Quick Installation Guide
| SKU | ARCHER-C54 |
|---|---|
| Order Lead Time | 1 - 2 Working Days |
| Product Availability | Online Only |
