TP-Link Archer AX12 AX1500 Wi-Fi 6 Router - Black

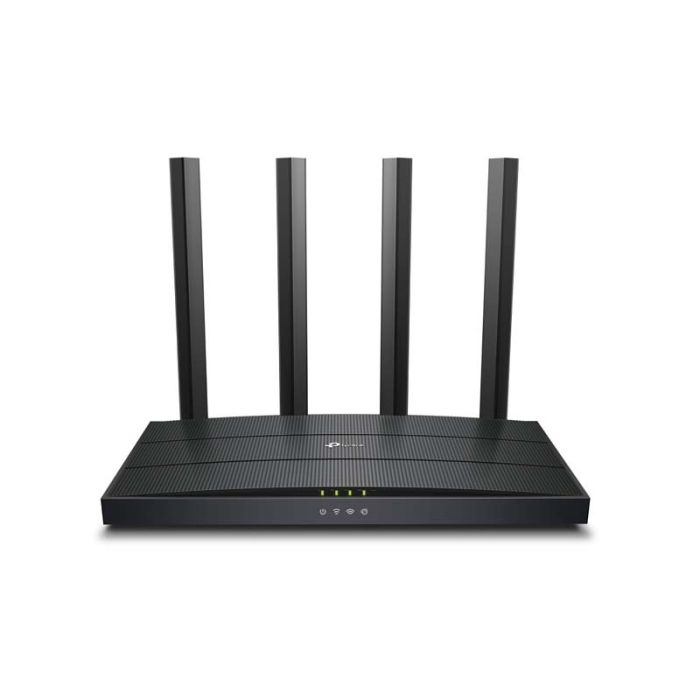

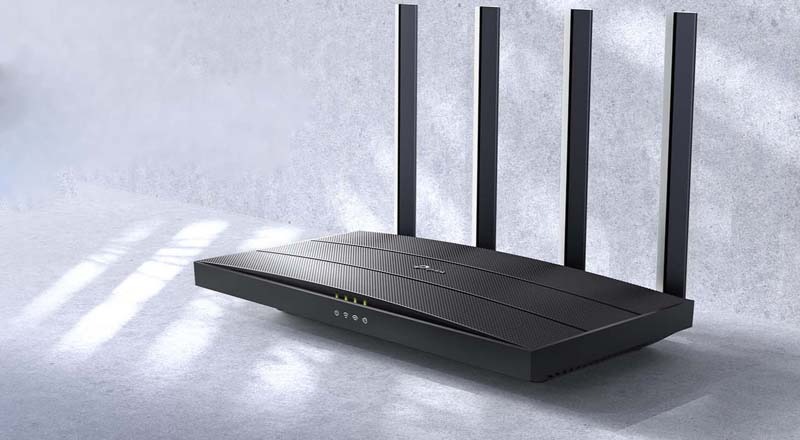

TP-Link Archer AX12 AX1500 Wi-Fi 6 Router
Higher Cost-Effective, Better Performance Network
AX1500 Dual-Band Gigabit Wi-Fi 6 Router
Wi-Fi 6 Upgrades Everything
The advanced Wi-Fi technology brings faster speeds, less lag, and higher capacity, enabling more simultaneous connections on your home network.

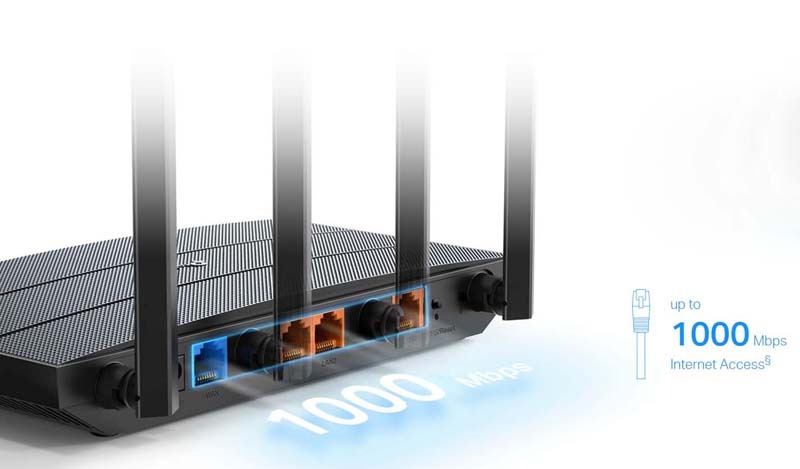

Gigabit Broadband Internet Access
All gigabit Ethernet ports allow you to take full advantage of your broadband speed up to 1 Gbps. Plug your PCs, smart TVs, and game consoles into one of the three gigabit ethernet LAN ports for fast, reliable wired connections.

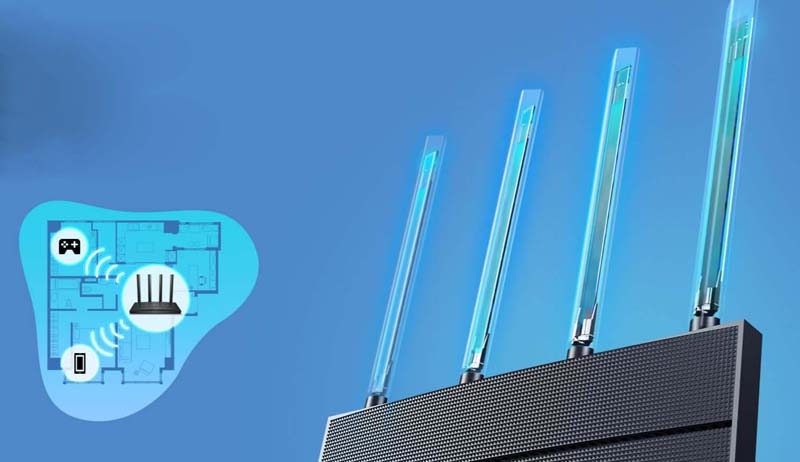

WiFi Coverage Throughout Your Home
4 high-performance external antennas boost WiFi signals throughout your home. Beamforming technology detects devices and concentrates wireless signal strength towards them, especially for previously hard to reach outlets.
WPA3—New Level of Cyber Security
The latest Wi-Fi security protocol, WPA3, brings new capabilities to improve cybersecurity in personal networks. More secure encryption in Wi-Fi password safety and enhanced protection against brute-force attacks combine to safeguard your home Wi-Fi.
Specifications
WIRELESS
Standards and Protocols
Wi-Fi 6
IEEE 802.11ax/ac/a 5 GHz
IEEE 802.11n/b/g 2.4 GHz
WiFi Speeds
AX1500
5 GHz: 1201 Mbps (802.11ax)
2.4 GHz: 300 Mbps (802.11n)
WiFi Range
2-3 Bedroom Houses
4× Fixed High-Performance Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas
Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range
WiFi Capacity
High
Dual-Band
Allocate devices to different bands for optimal performance
OFDMA
Simultaneously communicates with multiple Wi-Fi 6 clients
Airtime Fairness
Improves network efficiency by limiting excessive occupation
4 Streams
Connect your devices to more bandwidth
Working Modes
Router Mode
Access Point Mode
SECURITY
Network Security
SPI Firewall
Access Control
IP & MAC Binding
Application Layer Gateway
Guest Network
1× 5 GHz Guest Network
1× 2.4 GHz Guest Network
VPN Server
OpenVPN
PPTP
WiFi Encryption
WPA2-PSK
WPA2-PSK/WPA-PSK
WPA3-Personal
WPA3-Personal/WPA2-PSK
WPA2-Enterprise
WPA/WPA2-Enterprise encryptions
HARDWARE
Ethernet Ports
1× Gigabit WAN Port
3× Gigabit LAN Ports
Buttons
WPS/Reset Button
Power
12 V ⎓ 1 A
SOFTWARE
Protocols
IPv4
IPv6
Parental Controls
URL Filtering
Time Controls
WAN Types
Dynamic IP
Static IP
PPPoE/PPTP (Dual Access)/L2TP (Dual Access)
Quality of Service
QoS by Device
Cloud Service
Auto Firmware Upgrade
OTA Firmware Upgrade
TP-Link ID
DDNS
NAT Forwarding
Port Forwarding
Port Triggering
DMZ
UPnP
IPTV
IGMP Proxy
IGMP Snooping
Bridge
Tag VLAN
DHCP
Address Reservation
DHCP Client List
Server
DDNS
TP-Link
NO-IP
DynDNS
Management Features
Tether App
Webpage
OTHER
System Requirements
Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10/11, MAC
OS, NetWare, UNIX or Linux
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other
Java-enabled browser
Cable or DSL Modem
Subscription with an internet service provider (for internet access)
Certifications
FCC, CE, RoHS
Environment
Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Storage Temperature: -40℃~60℃ (-40℉ ~140℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
TEST DATA
WiFi Transmission Power
CE:
<20dBm (2.4 GHz)
<23dBm (5.15 GHz~5.25 GHz)
FCC:
<30dBm (2.4 GHz & 5.15 GHz~5.825 GHz)
WiFi Reception Sensitivity
5 GHz:
11a 6Mbps: -95dBm, 11a 54Mbps: -79dBm
11ac VHT20_MCS0: -96dBm, 11ac VHT20_MCS8: -66dBm
11ac VHT40_MCS0: -94dBm, 11ac VHT40_MCS9: -63dBm
11ac VHT80_MCS0: -91dBm, 11ac VHT80_MCS9: -60dBm
11ax HE20_MCS0: -95dBm, 11ax HE20_MCS11: -66dBm
11ax HE40_MCS0: -92dBm, 11ax HE40_MCS11: -65dBm
11ax HE80_MCS0: -89dBm, 11ax HE80_MCS11: -62dBm
2.4 GHz:
11g 6Mbps: -96 54Mbps: -80
HT20-MCS0: -97 MCS7: -78
HT40-MCS0: -94 MCS7: -75
PHYSICAL
Dimensions (W×D×H)
8.5 × 4.6 ×1.3 in
(215 × 117 × 32 mm)
What’s in the box
1x Wireless Router Archer AX12
1x Power Adapter
1x RJ45 Ethernet Cable
1x Quick Installation Guide
| SKU | ARCHER-AX12 |
|---|---|
| Order Lead Time | 1 - 2 Working Days |
| Product Availability | Online Only |
