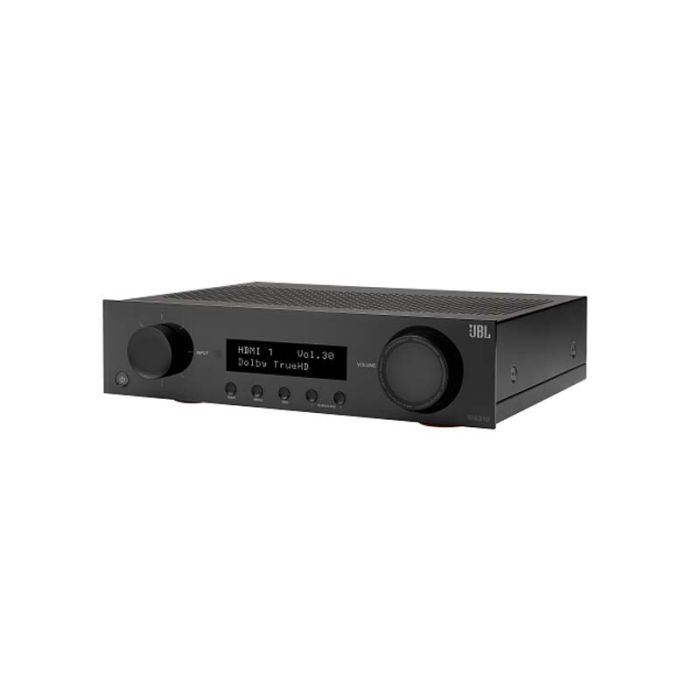

JBL MA310 5.2-Channel AV Receiver - Black
JBL MA310 5.2-Channel AV Receiver
Extraordinary audio and video performance
5.2-channel AV receiver that delivers extraordinary audio performance with 4K video for a supreme home cinema experience.
Intuitive setup with a minimalist modern design
Seamless integration with smart TVs, gaming consoles, streaming, cable boxes and more with 4 HDMI inputs and 1 output, plus ARC.
High-performance immersive surround sound
Native 5-channel decoding of Dolby and DTS formats.
Specifications
HDMI Audio Return Channel
Yes
4K HDMI input connectors (HDMI 2.0, HDCP 2.2 up to 4K/60Hz Ultra HD)
4
HDR 10
Yes
Pure Direct
Yes
EZ Set EQ
Yes
Digital signal processing
up to 24-bit/192kHz
Mains voltage
110 – 240V, 50–60Hz
Max. power consumption
200W
Standby power consumption
<0.5W
Audio Specifications
Channels
5.2
FTC Rated Output Power (20Hz– 20kHz, 2 channels driven, 1% THD max, 8Ω)
50W
Rated Power @ 8Ω (20Hz – 20kHz, 2 channels driven, 0.5% THD max)
60 W RMS
Rated Power @ 4Ω (20Hz – 20kHz, 2 channels driven, 0.5% THD max)
100 W RMS
Dimensions
Dimensions incl. feet and speaker terminals (H x W x D)
4.3” x 17.0” x 13.7” (109.2mm x 432.0mm x 347.6mm)
Weight
11.3lb (5.1kg)
Control and Connection Specifications
HDMI Input/Output
4 / 1
Bluetooth receiver
Yes (v5.1, Low Energy)
Digital Audio Input
1 Coax, 1 Optical
Stereo analog input
2 single-ended RCA
Pre-Out (single ended RCA)
Subwoofer 1, Subwoofer 2
What's in The Box
1x IR Remote
2x AAA batteries
1x Bluetooth antenna
1x Power Cord
1x Quick-Start Guide
1x Safety Sheet
