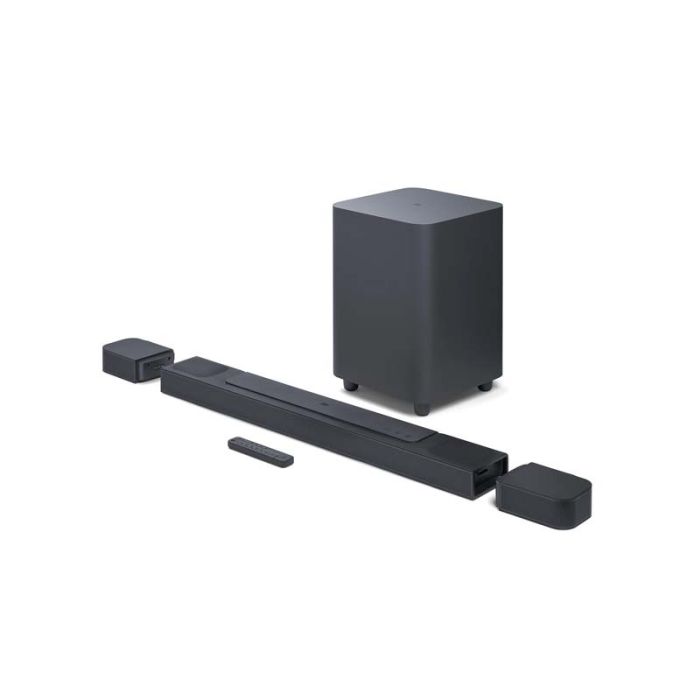

JBL BAR 800 Pro 5.1.2 Channel Soundbar with Subwoofer - Black
JBL BAR 800 Pro 5.1.2 Channel Soundbar with Subwoofer
True Dolby Atmos® Surround Sound
Immerse yourself in theater-quality 3D sound. With two up-firing drivers, the JBL Bar 800 delivers true Dolby Atmos® 3D surround sound.

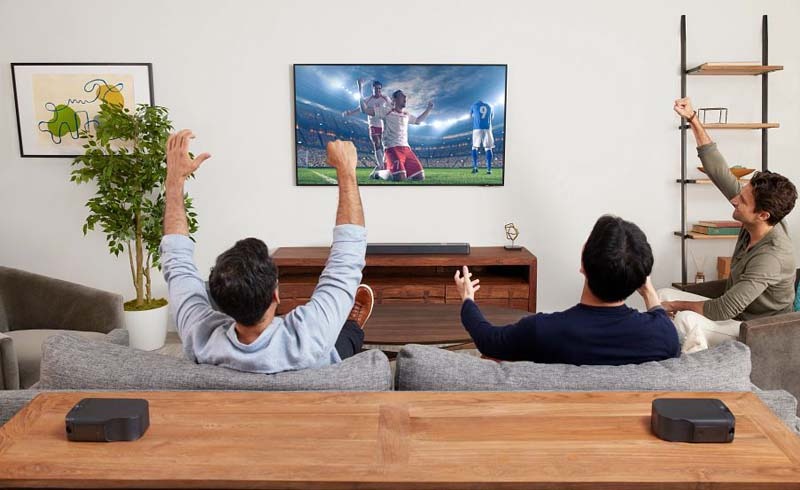

Real surround sound with detachable surround speakers
Enjoy real surround sound without the hassle of extra wires and power connections. Just place the two detachable battery-powered surround speakers behind you and get swept away in amazing audio.

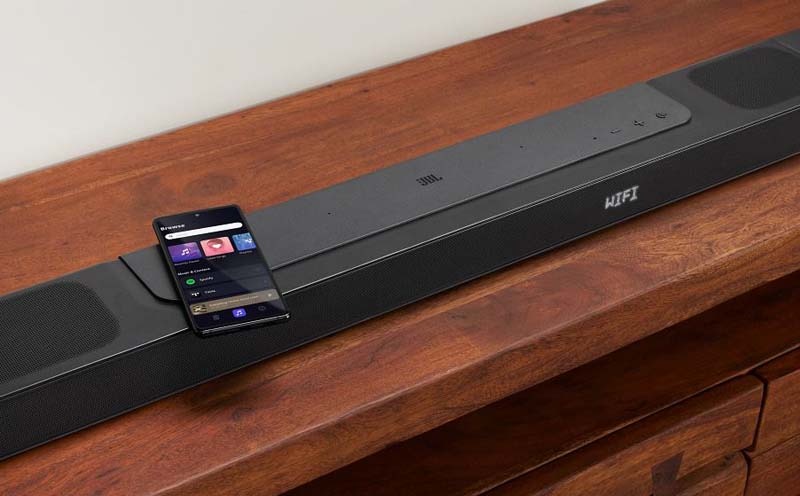

Built-In Wi-Fi with AirPlay, Alexa Multi-Room Music and Chromecast built-in™
Get ready to explore. Access over 300 online music streaming services through AirPlay, Alexa MRM and Chromecast built-in™. Enjoy all of your favorite audio content, Internet radio, and podcasts in high definition. The Wi-Fi connection also allows automatic software updates, so you can always enjoy the latest features.
Specifications
General Specifications
Power supply100 - 240V AC, ~ 50/60Hz
Networked standby power< 2.0W
Operating temperature0°C - 45°C
Audio Specifications
Total speaker power output (Max @THD 1%)720W
Soundbar output power (Max @THD 1%)340W
Surround speaker output power (Max @THD 1%)2x 40W
Subwoofer output power (Max. @THD 1%)300 W
Soundbar transducer3x (46x90)mm racetrack drivers, 3x 0.75" (20mm) tweeters, 2x 2.75" (70mm) up-firing full-range drivers
Surround speaker transducer1x (46x90)mm racetrack driver
Subwoofer transducer10” (260mm)
Frequency response35Hz - 20kHz (-6dB)
Audio inputs1 Optical, Bluetooth, Chromecast Built-in, AirPlay and Alexa MRM, USB (USB playback is available in US version. For other versions, USB is for Service only.)
Dimensions
Total soundbar dimensions (W x H x D)1174 x 56 x 120 mm / 46.2" x 2.2" x 4.7"
Main soundbar dimensions (W x H x D)884 x 56 x 120 mm / 34.8" x 2.2" x 4.7"
Detachable surround speaker dimensions (each) (W x H x D)145 x 56 x 120 mm / 5.7" x 2.2" x 4.7"
Subwoofer dimensions (W x H x D)305 x 440.4 x 305 mm / 12" x 17.3" x 12"
Soundbar weight3.4 kg / 7.4 lbs
Detachable surround speaker weight (each)1.3 kg / 2.8 lbs
Subwoofer weight10 kg / 22 lbs
Packaging dimensions (W x H x D)1000 x 375 x 475 mm/ 39.4" x 14.8" x 18.7"
Packaging Weight18.9 kg / 41.6 lbs
Control and Connection Specifications
USB portType A
USB rating5V DC, 0.5A
Supporting file formatMP3
MP3 codecMPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3
MP3 sampling rate16 - 48 kHz
MP3 bitrate80 - 320 kpbs
Bluetooth version5.0
Bluetooth profileA2DP 1.2, AVRCP 1.5
Bluetooth transmitter frequency range2400MHz – 2483.5MHz
Bluetooth transmitter power<15dBm (EIRP)
Wi-Fi network IEEE 802.11 a/b/g/n/a/ax (2.4GHz/5GHz)
2.4G Wi-Fi transmitter frequency range2412 - 2472MHz (2.4GHz ISM Band, USA 11 Channels, Europe and others 13 channels)
2.4G Wi-Fi transmitter power< 20dBm (EIRP)
5G Wi-Fi transmitter frequency range5.15 - 5.35GHz, 5.470-5.725GHz, 5.725 - 5.825GHz
5G Wi-Fi transmitter power5.15-5.25GHz <23dBm, 5.25-5.35GHz & 5.47-5.725GHz <20dBm, 5.725-5.825GHz <14dBm (EIRP)
2.4G wireless transmitter frequency range2406 - 2474MH
2.4G wireless transmitter power＜10dBm (EIRP）
Battery
Lithium battery3.635V, 3283mAh
What’s in the box
1x Main soundbar
2x Detachable wireless surround speakers
1x Wireless subwoofer
Remote control with 2 x batteries
Power cords (up to 8pcs depending on region SKUs)
1 x HDMI cable
2 x L-shape wall-mount bracket (main bar) + 2 x U-shape wall-mount bracket (for surround speakers) kit with screws
4 x Side caps
Quick start guide
Safety instruction and Warranty card
Wall mount template
| SKU | CON000137 |
|---|---|
| Order Lead Time | 2 - 4 Working Days |
| Product Availability | Online Only |
