Manage and monitor the switch effortlessly using the UniFi Network Application, giving you complete visibility and control over your network performance.

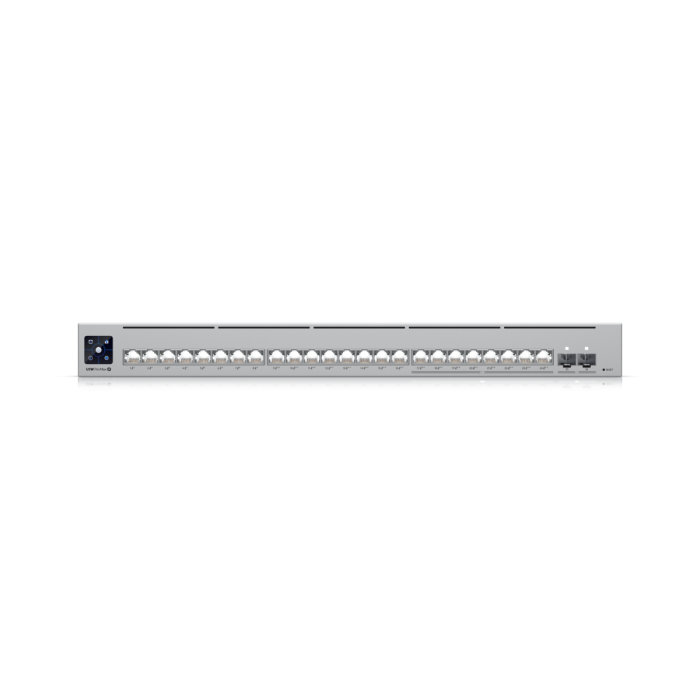

Ubiquiti UniFi Pro Max Switch 24 with 16 Gigabit 8x 2.5Gbps 2SFP+
Ubiquiti
Special Price
R 18,499.00
Regular Price
R 19,999.00
Save 8%Split into interest-free payments
with
Get it Mon, April 20 – Tue, April 21
Free collection within Gauteng Free 7 day return policy Limited 2 year warranty
Get it now, pay later
pm
R 4,624.75 pm
R 6,166.33 pm
Get your goods upfront and pay for them over 3 interest free instalments.
Ubiquiti UniFi Pro Max Switch 24
with 16 Gigabit 8x 2.5Gbps 2SFP+
This 24-port Layer 3 Etherlighting™ switch delivers a 400W PoE budget, combining 16 Gigabit PoE ports (8× PoE++ and 8× PoE+) with 8 high-speed 2.5Gbps PoE++ ports and 2 10Gbps SFP+ uplink ports. It’s ideal for supporting WiFi 6 access points, cameras, and other PoE devices, while maintaining lightning-fast fibre uplinks to your core network. Ubiquiti UniFi USW-Pro-Max-24-PoE is an advanced Layer 3 managed switch engineered for high-performance enterprise deployments.
Dimensions
| 442 x 325 x 44 mm (17.4 x 12.8 x 1.7") |
Port Layout
1 GbE RJ45 | 16 (8 PoE+; 8 PoE++) (1G/100M/10M) |
2.5 GbE RJ45 | 8 (All PoE++) (2.5G/1G/100M/10M) |
10G SFP+ | 2 (10G/1G) |
Max. PoE Output | Up to PoE++ |
Total PoE Availability | 400W |
Redundancy | DC Power Backup |
Layer 3 | ✓ |
Form Factor | Rack mount (1U) |
Etherlighting™ | ✓ |
Hardware
PoE Ports | |
PoE+ | 8 |
PoE++ | 16 |
Max. PoE Wattage per Port by PSE | |
PoE | 15.4W |
PoE+ | 32W |
PoE++ | 64W |
Max. Power Consumption | 50W (Excluding PoE Output) 450W (Including PoE Output) |
Power Method | (1) Universal input, 100–240V AC, 50/60 Hz (1) USP RPS DC input |
Power Input Method | AC input |
Power Supply | AC/DC, internal, 550W |
Supported Voltage Range | 100–240V AC |
Management | Ethernet AR |
Heat Dissipation | 119 BTU/hr (Excluding PoE Output) |
Weight | Without mounting brackets: 5.1 kg (11.3 lb) With mounting brackets: 5.2 kg (11.5 lb) |
Enclosure Material | SGCC steel |
Mount Material | SGCC steel |
Supported Rack Depth | 400~1200 mm (15.7-47.2") |
LCM Display | 1.3" touchscreen |
Ambient Operating Temperature | -5 to 40° C (23 to 104° F) |
Ambient Operating Humidity | 10 to 90% noncondensing |
Etherlighting™ | |
Ethernet | ✓ |
SFP+ | ✓ |
NDAA Compliant | ✓ |
Certifications | CE, FCC, IC, Anatel: 06374-24-08356 |
Performance
Switching Capacity | 112 Gbps |
Total Non-Blocking Throughput | 56 Gbps |
Forwarding Rate | 83 Mpps |
Supported VLANs | 1,000 |
L3 Table Size | |
ARP Entries | 6,000 |
IPv4 Static Routes | 256 |
Packet Buffer Size | 1.5 MB |
Access Lists | |
IPv4 | 128 |
MAC | 128 |
Layer 2 Features
LACP Port Aggregation | ✓ |
STP & RSTP | ✓ |
QoS (DSCP) | ✓ |
Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron) | ✓ |
Advanced IGMP Configuration (Querier, Fast Leave, Router Port) | ✓ |
ARP Entries | ✓ |
IPv4 Static Routes | ✓ |
Packet Buffer Size | ✓ |
IGMP Snooping | ✓ |
802.1X Control | ✓ |
MAC-Based ACLs & Device Isolation | ✓ |
DHCP Snooping & Guarding | ✓ |
Egress Rate Limit | ✓ |
Flow Control | ✓ |
Storm Control | ✓ |
Multicast & Broadcast Rate Limiting | ✓ |
MAC Address Blocking | ✓ |
IP-Based ACLs & Network Isolation | ✓ |
MAC-Based Port Restriction | ✓ |
Port Isolation | ✓ |
Port Mirroring | ✓ |
Jumbo Frames | ✓ |
LLDP-MED | ✓ |
Voice VLAN | ✓ |
Loop Protection | ✓ |
Virtual Network Override | ✓ |
Software
Application Requirements | |
UniFi Network | Version 8.0.24 and later |
Package Contents
1x | Ubiquiti UniFi Pro Max Switch 24 with 16 Gigabit 8x 2.5Gbps 2SFP+ | USW-Pro-Max-24 |
| SKU | USW-PRO-MAX-24-POE-EU |
|---|---|
| Order Lead Time | 1 - 2 Working Days |
| Product Availability | Online Only |
