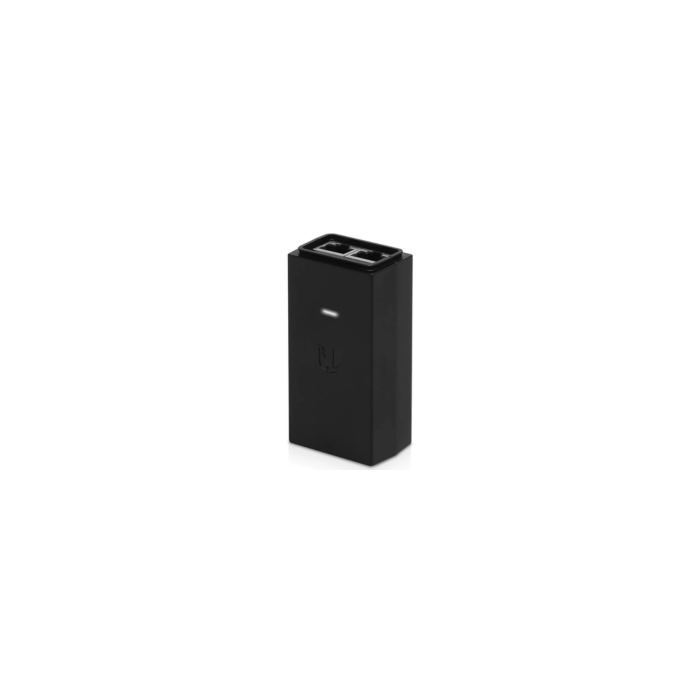

Ubiquiti 24V 0.5A Gigabit PoE Adapter - Black
Ubiquiti 24V 0.5A Gigabit PoE Adapter
Device Protection
PoE Adapters are highly reliable, and when used with Ubiquiti TOUGHCable, they provide earth grounding and surge protection to help protect against electrostatic discharge (ESD) events.
Seamless airGateway Compatibility
The 15V, 0.8A and 24V, 0.5A models, POE-15-12W, POE-24-12W and POE-24-12W-G, work with the airGateway to bridge airMAX connections to Wi-Fi at customer locations
Dimensions
| 87 x 44 x 29 mm |
Weight | 99 g |
General Spec
| Output voltage | 24V DC @ 0.5A |
LAN activity indicator | No |
Gigabit LAN port | Yes |
Remote reset capability | Yes |
Reset button | Yes |
Rated voltage | 100-240V AC @ 50/60Hz |
Input current | 0.3A @ 120V AC, 0.2A @ 240V AC |
Inrush current | <30A peak @ 120V AC, <60A peak @ 230V AC |
Efficiency | 75+% |
Output ripple | 1% Max |
Switching frequency | 50 kHz |
Line regulation | ≤ 3% |
Load regulation | ≤ 5% |
2-pair powering | Pins 4, 5 (+) and pins 7, 8 (-) |
AC connector | IEC-320 C6 |
Data IN / PoE | RJ45 shielded socket |
Surge protection | Difference and common mode |
Clamping protection | 11V data, 60V power |
Max. surge discharge | 1500A (8/20 μs) power |
Peak pulse current | 36A (10/1000 μs) data |
Shunt capacitance | <5 pF data |
Response time | <1 ns |
Warranty
12 month(s) |
Package Contents
1x | Ubiquiti 24V 0.5A Gigabit PoE Adapter - Black |
| SKU | POE-24-12W-G-A |
|---|---|
| Order Lead Time | 1 - 2 Working Days |
| Product Availability | Online Only |
