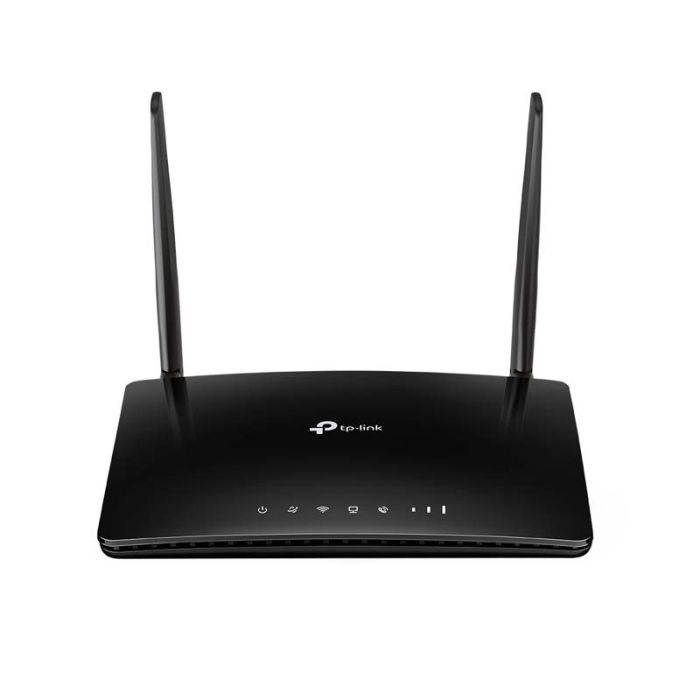

TP-Link TL-MR6500V 300Mbps Wireless N 4G LTE Router + Voip
TP-Link TL-MR6500V 300Mbps Wireless N 4G LTE Router + Voip
Enjoy WiFi and Phone Calls All in One 4G Router
4G LTE Telephony Modem Router

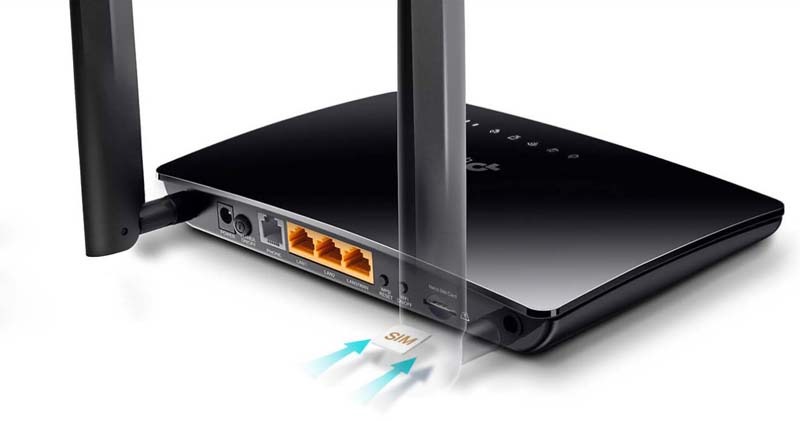

Plug and Play, No Configuration
With an integrated 4G LTE modem and a built-in SIM card slot, all you need to do is insert a micro SIM card and turn on the router. Enjoying fast, stable WiFi on a 4G LTE network has never been easier.
Share WiFi over a 4G Network - Flexible and Stable
Simply build your home WiFi network via 4G broadband access with download speeds of up to 150 Mbps. You can share the internet with multiple WiFi devices to enjoy uninterrupted HD movies, rapid file downloads, seamless video chats, and more at the same time.
Enjoy WiFi and Phone Calls Simultaneously
TL-MR6500v is not only a WiFi router and modem combo, but also a phone. It has a phone port to connect your existing landline phone so that you can make phone calls and surf the internet at the same time. Moreover, various voice functions are supported including VoIP, VoLTE, and CSFB. Simply enjoy a professional and high-quality voice call as you like.
Built-in Storage for Voicemail
Instead of paying for a voicemail service from your ISP, get free access if you own this modem/router/phone combo. With 50 MB of internet storage, TL-MR6500v records 100 minutes of voicemail. Never worry about missing any calls or messages when away from home.

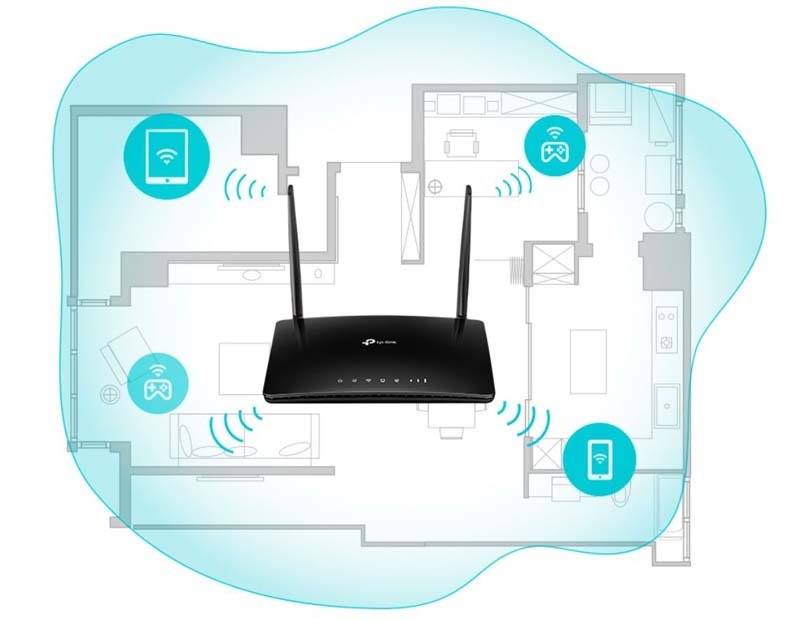

Special Design for Maximum Network Coverage
Two detachable advanced antennas reinforce the wireless connection between the router and every device with more stability and flexibility. A built-in power amplifier and low noise amplifier also help provide wider coverage by improving the router’s sending and receiving capabilities.

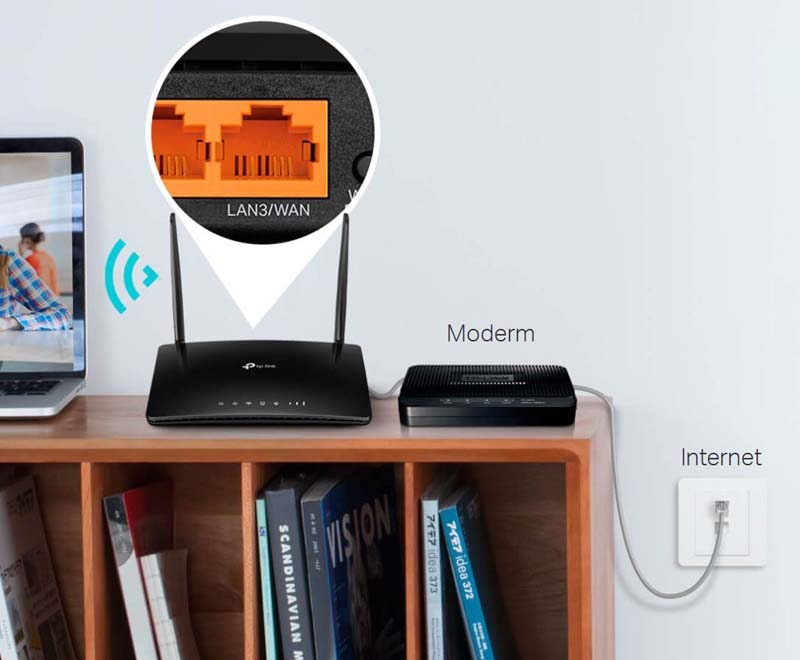

Available WAN Connection
The WAN/LAN port enables TL-MR6500v to work as a traditional wireless router which is compatible with cable, fiber, and DSL modems. And when it's set as a wireless router, its 3G/4G connection works as a backup to provide a sustained and reliable internet connection for you.
Specifications
HARDWARE FEATURES
Interface
1× 10/100 Mbps LAN/WAN Port
2× 10/100 Mbps LAN Ports
1× Phone Port
1× Nano SIM Card Slot
2× External SMA-F Antenna Interface
Button
WPS/RESET Button, Wi-Fi ON/OFF Button
External Power Supply
12V/1A
Dimensions (W x D x H)
7.95 × 5.55 × 1.32 in (202 × 141 × 33.6 mm)
Antenna
2× Detachable External 4G LTE Antennas
WIRELESS FEATURES
Wireless Standards
IEEE 802.11b, 802.11g, 802.11n
Frequency
2.4 GHz
Signal Rate
300Mbps at 2.4GHz
Reception Sensitivity
11g 54M: -74 dBm
11n HT20: -71 dBm
11n HT40: -67 dBm
Wireless Functions
Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless
Statistics
WAN Failover
Yes
Wireless Security
64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions
Network Type
4G: FDD-LTE B1/B3/B7/B8/B20 (2100/1800/2600/900/800 MHz)
TDD-LTE B38/B40/B41 (2600/2300/2500 MHz)
3G: DC-HSPA+/HSPA+/HSPA/UMTS B1/B8 (2100/900 MHz)
SOFTWARE FEATURES
Quality of Service
WMM, QoS
Operating Modes
3G/4G Router, Wireless Router
WAN Type
Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access)
Management Features
Access Control, Local Management, Remote Management
DHCP
Server, Client, DHCP Client List, Address Reservation
Port Forwarding
Virtual Server, Port Triggering, UPnP, DMZ
Dynamic DNS T
P-Link DDNS, DynDns, NO-IP
VPN Pass-Through
PPTP, L2TP, IPSec
Access Control
Parental Controls, Local Management Control, Host List, Access Control
Firewall Security
DoS, SPI Firewall, IP and MAC Address Binding
Protocols
Supports IPv4 and IPv6
Guest Network
2.4 GHz Guest Network
VPN Server
PPTP VPN, OpenVPN
TELEPHONY
VoIP Standards
SIP(RFC3261)/RTP(RFC1889/3550), G.711A/u, G.729AB, G.726
Integrated Answering Machine
Stores 100 minutes long voice messages internally on the modem router
Advanced Telephone Functions
Call Blocking, Anonymous Call Blocks, Speed Dial, Emergency Number
OTHERS
Certification
CE, RoHS
System Requirements
Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, 10
MAC OS, NetWare, UNIX or Linux
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0 browsers or higher, or other Java-enabled browsers Nano SIM Card
Environment
Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
What’s in the box
1x 300 Mbps Wireless N 4G LTE Telephony Router
1x RJ45 Ethernet Cable
1x 1.5m Power Adapter
1x Quick Installation Guide
| SKU | TL-MR6500V |
|---|---|
| Order Lead Time | 1 - 2 Working Days |
| Product Availability | Online Only |
