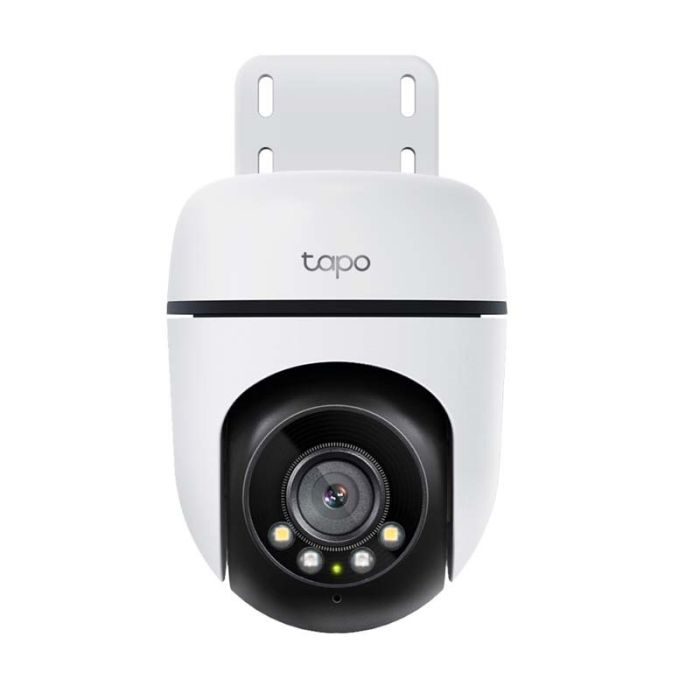

TP-Link Tapo C510W 2K Outdoor Pan / Tilt Security WiFi Camera
TP-Link Tapo C510W 2K Outdoor Pan / Tilt Security WiFi Camera
All-Round Protection with Vivid Colors
Outdoor Pan/Tilt Security Wi-Fi Camera

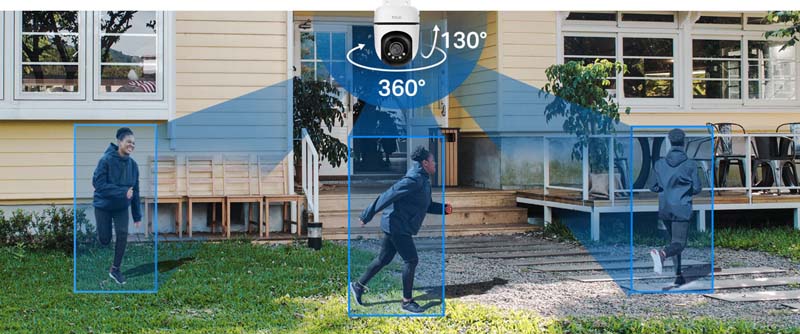

360° All-Round Protection
Provides 360° horizontal & 130° vertical viewing range, enabling you to focus on more vital areas and eliminate blind spots. Assign points for the camera to patrol for dynamic monitoring.

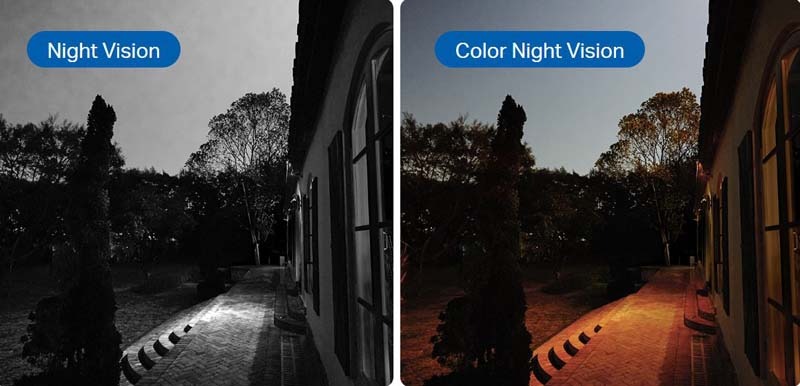

Vivid Colors, Even at Night
Capture vibrant color night vision up to 30 meters away for more details in low-light conditions. With smart mode, the live view turns color night vision after detecting person.

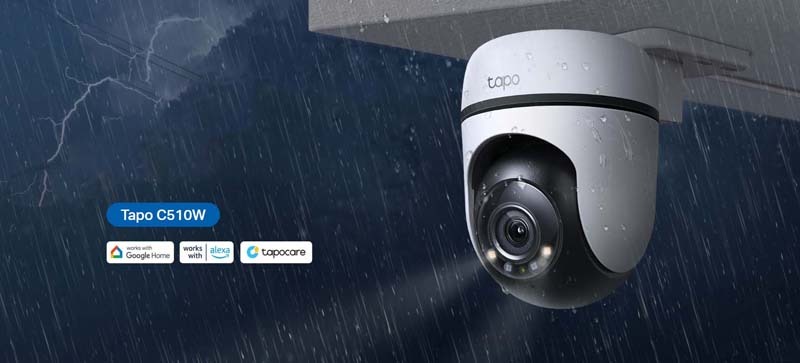

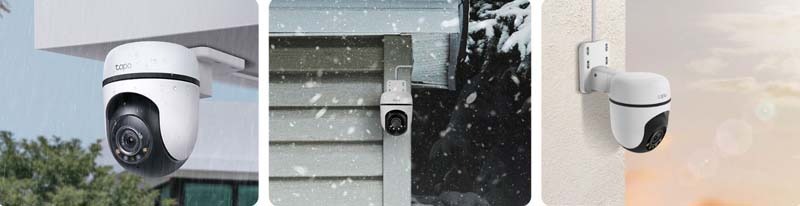

Build to Withstand Water & Dust
Tapo C510W is protected against jets of water and dust with IP65 weatherproof rating. It works well in rain, snow, dust, and heat.
Customizable Sound and Light Alarm
Craft your own audio alarm and tailor the intensity of the dual spotlights to fit your needs. Activate the integrated siren along with the spotlight alarm to deter unwelcome intruders effectively.

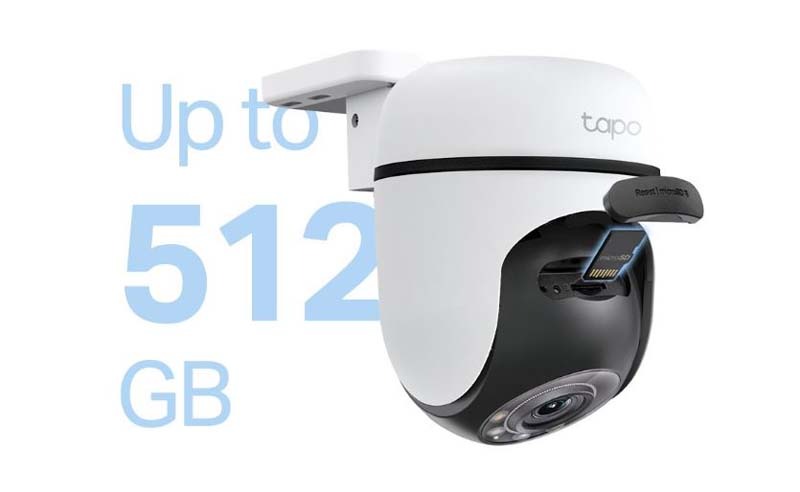

Secure Local & Cloud Storage
Save all your important moments to a microSD card (up to 512 GB) or subscribe to Tapo Care for cloud service after a free trial.
Up to 512 GB local storage equals 840 hours (about 35 days) of 2K footage, freeing you from being stuck with limited built-in storage.
Receive rich notifications with snapshots, encrypted protection, data backups, and 30-day video clip history with Tapo Care cloud services.

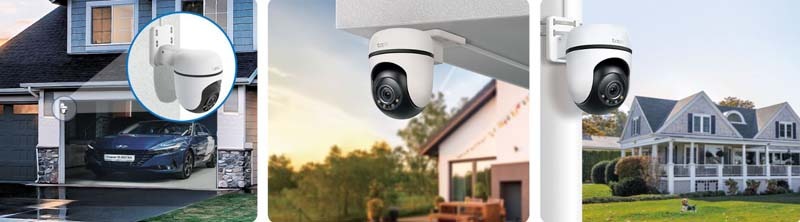

Install Where You Value Most
Tapo C510W supports multiple installation options. You can install the camera on the wall, eave, or pole. Monitor the area where you care the most.
Specifications
CAMERA
Image Sensor
1/2.8" Progressive Scan CMOS Sensor
Lens
Focal Length: 3.9 mm
Aperture: F2.0
Field of View: 97.23°(Diagonal), 82.3°(Horizontal)，45.31°(Vertical)
Motion Range
Pan Mechanical Range: 340° (360° Pan Coverage)
Tilt Mechanical Range: 60° (130° Tilt Coverage)
Night Vision
850 nm IR LED (98 ft / 29.9 m)
Color Night Vision
Lighting
2× Built-in Spotlights
Interface & Button
1× RESET Button
1× MicroSD Card Slot
Weatherproof Rating
IP65
View Range
360° horizontal and 130° vertical
Resolution
2K 3MP (2304 × 1296 px)
VIDEO & AUDIO
Maximum Resolution
2304 × 1296 px
Frame Rate
30 fps
Video Compression
H.264
Live View
Yes
Image Enhancement
3DNR
WDR
Audio Input & Output
Built-in Microphone and Speaker
Audio Communication
Two-Way Audio with Noise Cancellation
Siren Volume
90 dB (Level measured at 4-inch/10-cm distance)
STORAGE
Local Storage
MicroSD Card Slot on Camera (Up to 512 GB)
Cloud Storage
Tapo Care Cloud Storage Services (Subscription required)
VIDEO
Frame Rate
15 fps
Video Streaming
2K
Video Compression
H.264
DETECTION and NOTIFICATIONS
AI Detection
Motion detection
Person detection
Tamper detection
Activity Zones
Yes
Output Notification
System Notification
System Notification with Snapshot (Tapo Care Services)
AUDIO
Audio Communication
Two-Way Audio
Audio Input & Output:
Built-in Microphone and Speaker
NETWORK
Network Connectivity
Connect via Wi-Fi
Wireless Connectivity
IEEE 802.11b/g/n, 2.4 GHz Wi-Fi
Wireless Security
WPA/WPA2-PSK
RTSP
Yes
ONVIF
Yes
Standards and Protocols
IEEE 802.11b/g/n
Security
128-bit AES encryption with SSL/TLS
Frequency
2.4 GHz
SECURITY
Security
On-Device Machine Learning
128-bit AES Encryption with SSL/TLS
WPA/WPA2-PSK
POWER
Power Source
9V DC Power Adapter
Input Voltage
100-240 V, 50/60 Hz
Output Voltage
9V, 0.85A (DC Power)
ACTIVITY NOTIFICATIONS
Input Trigger
Person Detection, Motion Detection
Output Notification
Snapshot (Tapo care), Clips (Tapo care)
HARDWARE
Button
RESET Button
Indicator LED
System LED
Adapter Input
100-240V, 50/60Hz
Adapter Output
12.0V/1.0A
Product Dimensions (W x D x H)
4.9 x 4.8 x 3.5 in. (123.8 x 123 x 90 mm)
GENERAL
Smart Integration
Google Assistant, Amazon Alexa
Weather Resistance
IP65
System Requirements
Tapo App: iOS 9.0 or higher, Andriod 4.4 or higher
Mounting Options
Ceiling-Mounted
Wall-Mounted
Pole-Mounted (Pole-Mounting loops required but not included)
Operating Temperature
-30℃~60℃
Storage Temperature
-40℃~60℃
Operating Humidity
10%~90%RH, Non-condensing
Storage Humidity
0~90%RH, Non-condensing
Dimensions (W x D x H)
4.9 × 4.8 × 3.5 in (123.8 × 123 × 90 mm)
Certifications
CE, FCC, RoHS, RCM
OTHERS
Certification
CE, FCC, RoHS, RCM
What’s in the box
1x Tapo C510W Camera
1x Power Adapter (3.0m)
1x Mounting Anchors
1x Mounting Screws
1x Bracket Screws
1x Mounting Template
1x Waterproof Seal
1x Mounting Bracket
1x Quick Start Guide
