Whole Home Mesh Wi-Fi System AC1900 Dual-Band Wi-Fi
Deco S7 offers a simple way to guarantee a strong WiFi signal in every corner of your home up to 5,600 square feet (3-pack). Wireless connections and an optional Ethernet backhaul work together to link Deco units, providing even faster network speeds and truly seamless coverage. Want more coverage? Simply add another Deco.

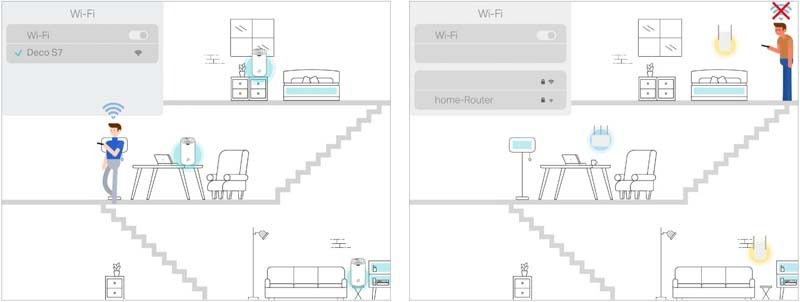

TP-Link Mesh means Deco units work together to form one unified network. Your phone or tablet automatically connects to the fastest Deco as you move through your home, creating a truly seamless WiFi experience.
Flexible and multifunctional, Deco S7 includes a variety of features allowing it to serve as a router or access point. Just choose the mode that best suits your actual network demands and enjoy maximum wireless flexibility.

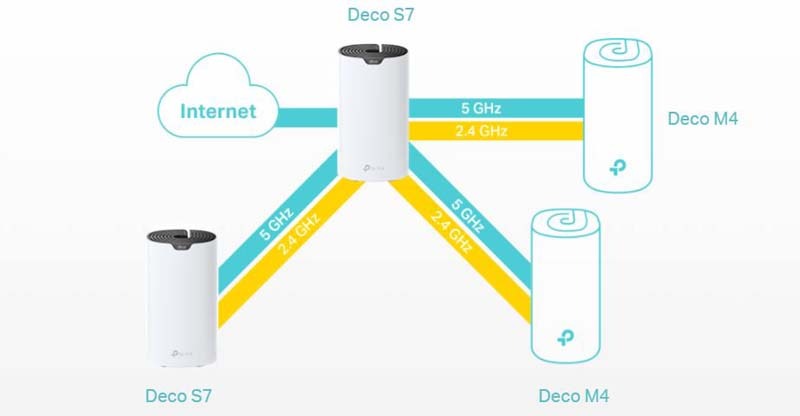

Deco S7 is compatible with every other Deco model to form a Mesh network. Expand Mesh Wi-Fi coverage anytime by simply adding more Decos.
WIRELESS
Standards and Protocols
Wi-Fi 5
IEEE 802.11ac/n/a 5 GHz
IEEE 802.11n/b/g 2.4 GHz
WiFi Speeds
AC1900
5 GHz: 1300 Mbps (802.11ac)
2.4 GHz: 600 Mbps (802.11n)
WiFi Range
3-5 Bedroom Houses (3-pack)
TP-Link Mesh Technology

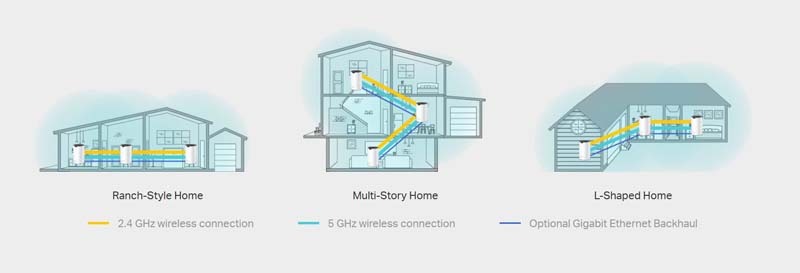

Optional Ethernet backhaul works together to link Deco units to provide seamless coverage
3× Antennas (Internal)
Multiple antennas form a signal-boosting array to cover more directions and large areas
Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range
WiFi Capacity
Medium
Dual-Band
Distribute devices to different bands for optimal performance
MU-MIMO
Simultaneously communicates with multiple MU-MIMO clients

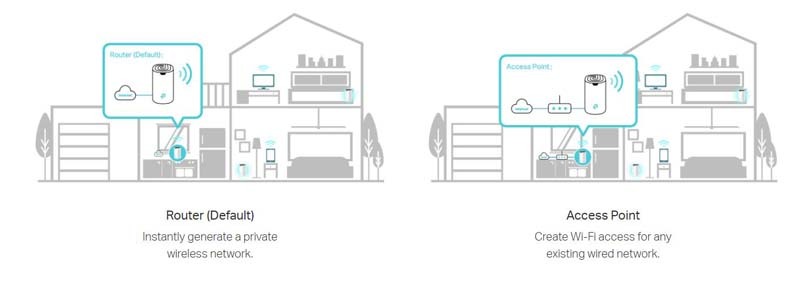

Working Modes
Router Mode
Access Point Mode
SECURITY
Network Security
SPI Firewall
Access Control
Guest Network
1× 5 GHz Guest Network
1× 2.4 GHz Guest Network
WiFi Encryption
WPA-Personal
WPA2-Personal
HARDWARE
Ethernet Ports
3× Gigabit Ports
*Per Deco Unit
Supports WAN/LAN autosensing
Buttons
Reset Button
SOFTWARE
Protocol
IPv4
IPv6
Parental Controls
URL Filtering
Time Controls
WAN Type
Dynamic IP
Static IP
PPPoE
PPTP
L2TP
Quality of Service
QoS by Device
Cloud Service
OTA Firmware Upgrade
TP-Link ID
DDNS
NAT Forwarding
Port Forwarding
UPnP
IPTV
IGMP Proxy
IGMP Snooping
Bridge
Tag VLAN
DHCP
Address Reservation
DHCP Client List
Server
DDNS
TP-Link
Management FeaturesDeco App
TEST DATA
WiFi Transmission Power
CE:
<20 dBm (2.4 GHz)
<23 dBm (5 GHz)
FCC:
<30 dBm (2.4 GHz)
<30 dBm (5 GHz)
PHYSICAL
Dimensions (W×D×H)
6.4 × 3.6 × 3.6 in
(162.3 × 90.7 × 90.7 mm)
OTHERS
Certification
CE, FCC, RoHS, NCC, BSMI, JRF, JPA, VCCI
System Requirements
Android 5.0 or later
iOS 9.0 or later
Environment
Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Storage Temperature: -40℃~60℃ (-40℉ ~140℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

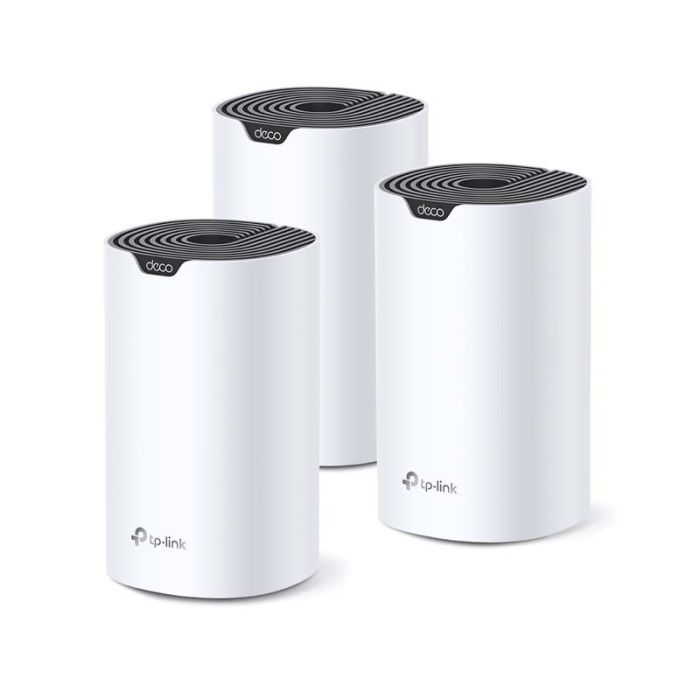

3x Deco S7 Units
1x RJ45 Ethernet Cable
3x Power Adapters
1x Quick Installation Guide
| SKU | DECOS7(3-PACK) |
|---|---|
| Order Lead Time | 1 - 2 Working Days |
| Product Availability | Online Only |
