Hikvision
Hikvision IPP Video Intercom Kit - Black
Online Only
Estimated delivery between September 30 and October 04.
Get It Now, Pay Later
* 7-Day Returns
Change-of-mind returns are accepted within 7 days on eligible products that remain unopened, unused, and in resellable condition. Opened or activated devices and accessories may not qualify for return. View our full Returns Policy.

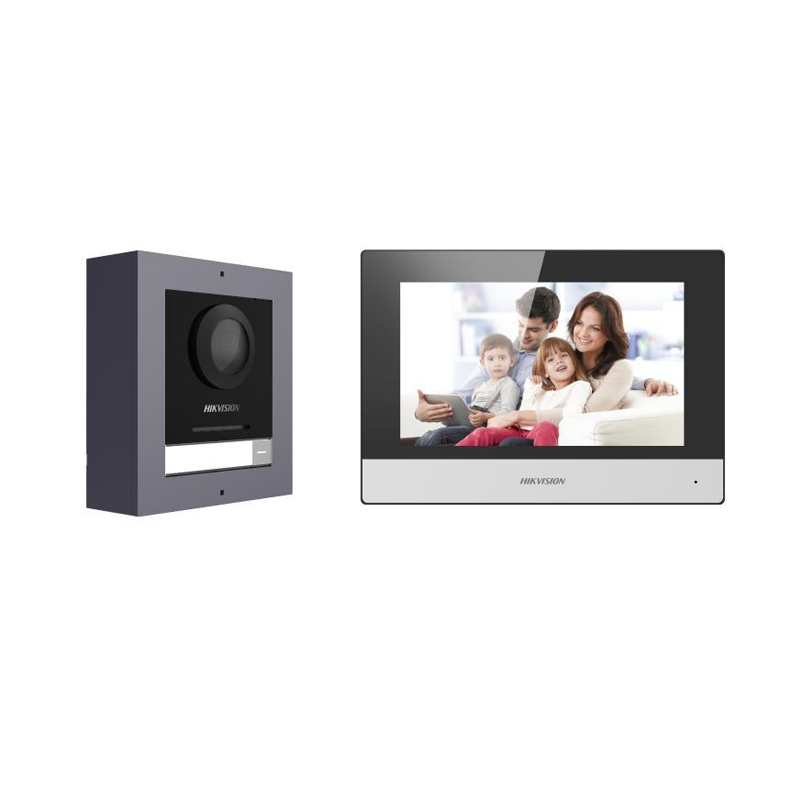

Hikvision IPP Video Intercom Kit
Features:
IP video intercom bundle for villa or house
One call button for easier calls
Stores messages and captured pictures in the TF card
Convenient Hik-Connect APP Mobile Control
Including: DS-KD8003-IME1(B)/Surface × 1, DS-KH6320-WTE1 × 1, 4-port standard PoE switch × 1, 16 GB TF card × 1
Power adapter included in the package
Specifications

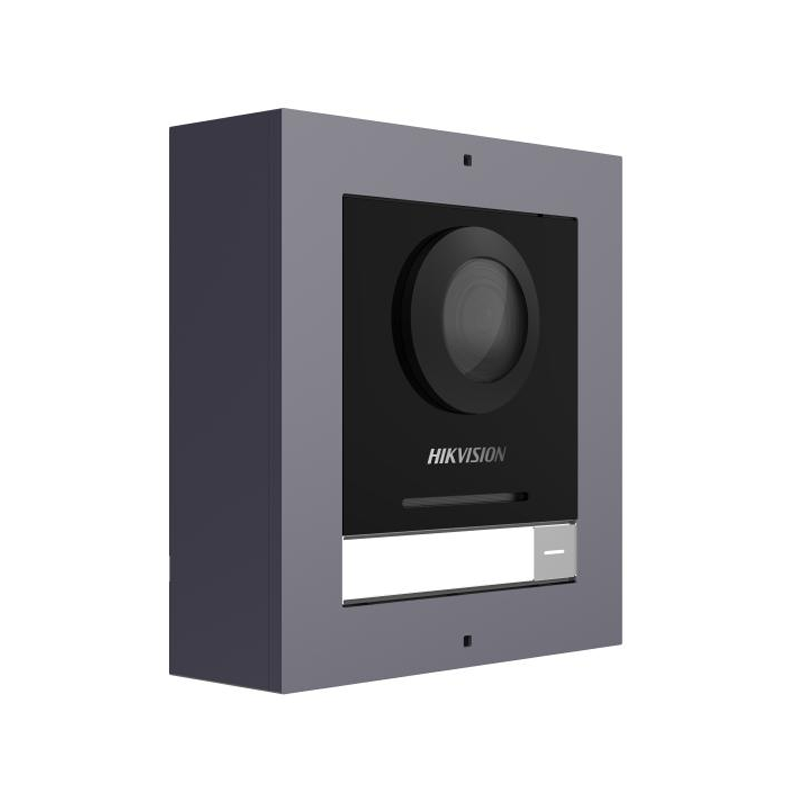

Door station/System parameters
Operation system
Embedded Linux operation system
Flash
32 MB
RAM
256 MB
Door station/Video parameters
Camera
2MP HD camera
Night vision
Low illumination IR supplement mode:3 m
Backlight compensation
Support
Digital noise reduction
Support
WDR
Support
Field of view
Horizontal: 146°, Vertical: 82°
Video Compression Standard
H.264
Motion detection
Support
Door station/Audio parameters
Audio input
Built-in omnidirectional microphone
Audio output
Built-in loudspeaker
Audio quality
Noise suppression and echo cancellation
Audio compression standard
G.711 U, G.711 A
Audio compression Rate
64 Kbps
Audio intercom
Two-way audio communication
Door station/Network parameters
Network protocol
TCP/IP, RSTP
Wired network
10/100 Mbps Ethernet
Door station/Device interfaces
Network interface
1 RJ45
RS-485
1 (1 for Hikvision's sub module communication)
Alarm input
4 (2 exit butttons and 2 door contacts by default)
Debugging port
1
Lock control
2 (2 relay, max to 30 V, 2 A)
TAMPER switch
1
Power interface
12 VDC power output (max to 12 V, 500 mA)
Door station/General
Power consumption
≤ 5 W
Working temperature
-40° C to 60° C (-40° F to 140° F)
Working humidity
10% to 95%
Dimension
Device: 98 mm × 100 mm × 42 mm (3.86" × 3.94\" × 1.65\")
Cover: 117 × 107 × 4 mm (4.61 × 4.21\" ×0.16\")
Installation Frame: 117 × 107 × 32.7mm (4.61 × 4.21\" ×1.29\")"
Installation
Surface mounting
Protection level
IP65
Indicator
0
Power supply
IEEE802.3af, standard PoE
12 VDC
Indoor station/System parameters
Operation system
Embedded Linux operation system
Memory
128 MB
Flash
32 MB
Indoor station/Display parameters
Display screen
7-inch colorful TFT screen
Display resolution
1024 × 600
Operation method
Capacitive touch screen
Indoor station/Audio parameters
Audio input
Built-in omnidirectional microphone
Audio output
Built-in loudspeaker
Audio quality
Noise suppression and echo cancellation
Audio compression standard
G.711 U, G.711 A
Audio compression Rate
64 Kbps
Indoor station/Network parameters
Wired network
10/100 Mbps self-adaptive
Wireless network
Wi-Fi 802.11 b/g/n
Protocol
TCP/IP, SIP, RTSP
RS-4851 RJ-45 10/100 Mbps self-adaptive
Indoor station/Device interfaces
RS-485
1
Alarm input
8-ch alarm inputs
Relay output
2
TF card
Max to 32 G, SD 2.0 or lower version
Indoor station/General
Power consumption
≤ 6 W
Working temperature
-10 °C to 55 °C (14 °F to 131 °F)
Working humidity
10% to 90%
Dimension
(L x W x H)200 mm × 140 mm × 23.6 mm (7.9" × 5.5" × 0.9")
