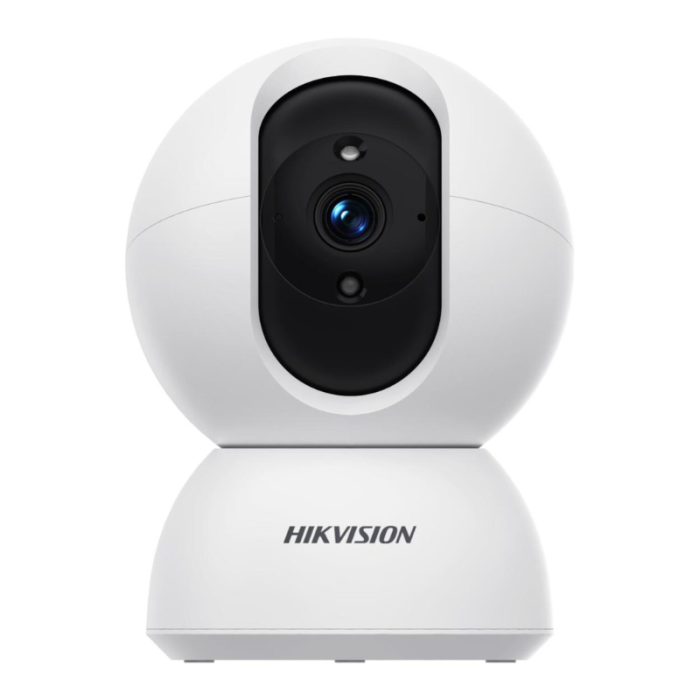

Hikvision Network PT Security Camera, 4mm Lens, 2MP
Hikvision Network PT Security Camera, 4mm Lens, 2MP
The Hikvision Network PT Security Camera, 4mm Lens, 2MP is a high-performance surveillance solution designed for homes, businesses, and professional security applications. With its 2MP resolution and EXIR 2.0 infrared technology, this camera provides crystal-clear imaging even in low-light conditions, ensuring 24/7 security monitoring.
This Wi-Fi-enabled camera offers seamless installation, eliminating the need for complex wiring. It features built-in two-way audio, allowing users to communicate in real time, making it ideal for home security, office surveillance, and retail monitoring. The H.265 compression technology ensures efficient storage management while maintaining superior image quality.
Built to withstand harsh environments, the IP66-rated weatherproof design protects against dust and water, making it suitable for indoor and outdoor installations. The adjustable pan, tilt, and rotation functions provide flexible positioning for maximum coverage. Additionally, the integrated microSD slot supports up to 512GB, allowing for extensive onboard video storage without the need for external storage devices.
With compatibility for Hik-Connect, iVMS-4200, and other major security platforms, users can remotely monitor live feeds, receive real-time alerts, and manage settings from anywhere. Whether for home protection, office security, or commercial surveillance, the Hikvision Network PT Security Camera, 4mm Lens, 2MP is an advanced, feature-packed solution designed for reliability and ease of use.
FEATURES:
2MP resolution (1920 × 1080) for sharp, clear video
EXIR 2.0 Infrared Technology provides enhanced night vision with a 30m IR range
Supports Wi-Fi connectivity
H.265 Video Compression: Saves storage space while maintaining video quality
Two-way audio for real-time communication
Ip66-rated dust and water-resistant for outdoor and indoor use
Motion Detection & Alerts in real-time
MicroSD card slot supports up to 512GB for local video storage
Compatible with Hik-Connect, iVMS-4200, and major security platforms
SPECIFICATIONS:
Camera:
Image Sensor: 1/3″ Progressive Scan CMOS
Max. Resolution: 1920 × 1080 (2 MP)
Min. Illumination: Colour: 0.005 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR
Shutter Time: 1/3 s to 1/10000 s
Day & Night: IR cut filter
Angle Adjustment: Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360°
Lens:
Lens Type: Fixed focal lens, 4 mm
Focal Length & FOV:4 mm: Horizontal FOV 75°, Vertical FOV 45°, Diagonal FOV 85°
Aperture: F2.0
Lens Mount: M12
Illuminator:
Supplement Light Type: IR
IR Wavelength: 850 nm
Supplement Light Range: Up to 10 m
Video:
Main Stream: 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 768 × 432) 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 768 × 432)
Sub-Stream: 50 Hz: 50 Hz: 25 fps (768 × 432, 512 × 288) 60 Hz: 30 fps (768 × 432, 512 × 288)
Video Compression: Main Stream: Main stream: H.265/H.264 Sub-stream: H.265/H.264
Video Bit Rate: Up to 1 M bps
Frame Rate: Max.15 fps – Self-Adaptive during network transmission
Audio:
Audio Compression: G.711/AAC-LC
Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate: 8 kHz/16 kHz
Environment Noise Filtering: Yes
Network:
Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, RTCP, NTP, UPnP, IGMP, QoS, IPv4, UDP, Bonjour, SSL/TLS
Simultaneous Live View: Up to 4 channels
API: ONVIF (Profile S, Profile T, Profile G), SDK
User/Host: Administrator
Security: Password protection, HTTPS encryption, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE for Open Network Video Interface
Client: iVMS-4200, Hik-Connect, Hik-Partner-Pro
Wi-Fi:
Transfer Rate: 11b: up to 54 Mbps, 11g: up to 54 Mbps, 11n: up to 150 Mbps
Encryption Mode: WPA-PSK/WPA2-PSK
Frequency Range: 2.412 GHz to 2.472 GHz
Channel Bandwidth: 20 MHz
Wireless Range: Up to 50 m (performance varies based on environment)
Image:
Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software
Day/Night Switch: Auto
Wide Dynamic Range (WDR): Digital WDR
Privacy Mask: 4 programmable polygon privacy masks
Interface:
Built-in Microphone: Yes
Built-in Speaker: Yes
On-Board Storage: Built-in memory card slot, support microSD card, up to 512 GB
Reset Key: Yes
Ethernet Interface: 1 RJ45 10M/100M self-adaptive Ethernet port
General:
Material: Plastic
Power: 5 VDC ± 10%, 1 A, max. 5 W
Storage Conditions: -10 °C to 45 °C (14 °F to 113 °F). Humidity 95% or less (non-condensing)
Startup & Operating Conditions: -10 °C to 45 °C (14 °F to 113 °F). Humidity 95% or less (non-condensing)
General Function: Heartbeat, mirror
Flashing Light: Red and Blue
Dimension: Ø 8 × 12.2 cm
Weight: Approx. 216 g
Protection: IP66
WHAT’S IN THE BOX:
Hikvision Network PT Security Camera, 4mm Lens, 2MP x1
User Manual x1
| SKU | DS-2CV2Q21G1-IDW-4 |
|---|---|
| Order Lead Time | 1 - 2 Working Days |
| Product Availability | Online Only |
