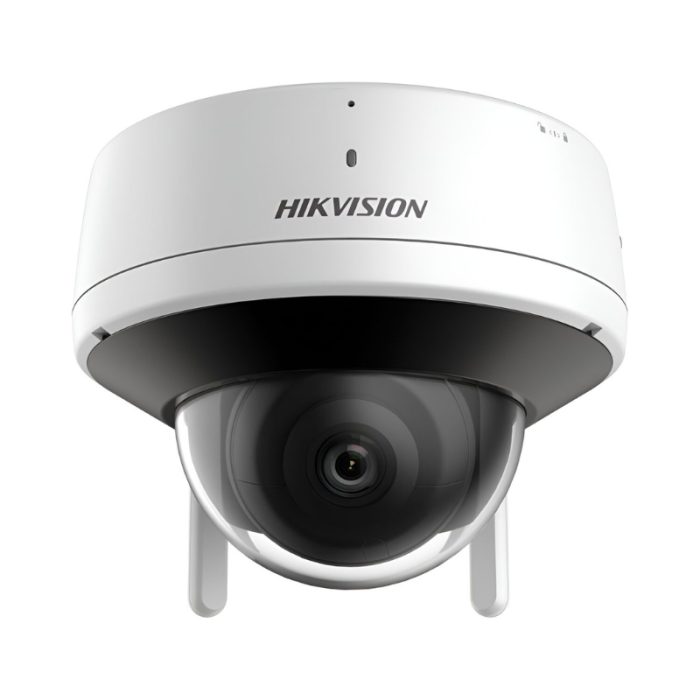

Hikvision Fixed Dome Outdoor Security Camera, 2.8mm Lens, 2MP
Hikvision Fixed Dome Outdoor Security Camera, 2.8mm Lens, 2MP
Enhance your security with the Hikvision Fixed Dome Outdoor Security Camera, designed for homes, businesses, and surveillance professionals seeking a reliable, high-definition security solution. With its 2MP resolution and advanced EXIR 2.0 infrared technology, this camera delivers clear, detailed images even in low-light conditions, ensuring round-the-clock monitoring.
Seamlessly connect via Wi-Fi for a hassle-free installation, eliminating the need for complex wiring. The built-in two-way audio allows real-time communication, making it ideal for remote monitoring of homes, offices, retail stores, or warehouses. With H.265 video compression, the camera reduces bandwidth usage and storage requirements without compromising image quality.
Designed to withstand harsh environments, this dome camera is IP66-rated, providing resistance against water and dust. The adjustable viewing angles ensure flexible coverage for different monitoring needs. For added security, the built-in microSD card slot supports up to 512GB of local storage, ensuring your footage is always accessible.
Compatible with Hik-Connect, iVMS-4200, and major security platforms, this camera offers remote access from anywhere, allowing users to monitor live feeds and receive alerts in real-time. Whether you’re safeguarding your home or managing a security network for a business, the Hikvision Fixed Dome Outdoor Security Camera is a powerful, feature-packed surveillance solution.
FEATURES:
High-quality imaging with 2 MP resolution
Wi-Fi connection and easy installation
Provides real-time security via built-in two-way audio
Efficient H.265 compression technology
EXIR 2.0, advanced infrared technology with long IR distance
Water and dust resistant (IP66)
Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
SPECIFICATIONS:
Camera
Image Sensor: 1/2.8″ Progressive Scan CMOS
Max. Resolution: 1920 × 1080 (2MP)
Min. Illumination:Colour: 0.005 Lux @ (F1.6, AGC ON) B/W: 0 Lux with IR
Shutter Time: 1/3 s to 1/10,000 s
Day & Night: IR cut filter
Angle Adjustment:Pan: 0° to 355°, Tilt: 0° to 75°, Rotate: 0° to 355°
Lens
Lens Type: Fixed focal lens (2.8mm)
Focal Length & Field of View (FOV): Horizontal FOV 92°, Vertical FOV 50°, Diagonal FOV 110°
Aperture: F1.6
Iris Type: Fixed
Lens Mount: M12
Depth of Field:2.8mm: 1.5m to ∞
DORI
2.8mm: Detection (D): 42m, Observation (O): 17m, Recognition (R): 9m, Identification (I): 4m
Illuminator
Supplement Light Type: IR
IR Wavelength: 850nm
Supplement Light Range: Up to 30m
Smart Supplement Light: Yes
Video
Main Stream:50Hz: 25fps (1920 × 1080, 1280 × 720) 60Hz: 30fps (1920 × 1080, 1280 × 720)
Sub-Stream:50Hz: 25fps (768 × 432, 512 × 288) 60Hz: 30fps (768 × 432, 512 × 288)
Video Compression: Main Stream: H.264 Sub-Stream: H.264
Video Bit Rate: 32 Kbps to 8 Mbps
H.264 Type: Baseline Profile/Main Profile/High Profile
Audio
Audio Compression: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC
Audio Bit Rate:64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC)
Audio Sampling Rate: 8kHz / 16kHz
Environment Noise Filtering: Yes
Network
Protocols Supported: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, RTCP, NTP, UPnP, IGMP, QoS, IPv4, UDP, Bonjour, SSL/TLS
Simultaneous Live View: Up to 6 channels
API: ONVIF, SDK
Client: Hik-Connect, iVMS-4200, Hik-Partner-Pro
Security Features: Password protection, HTTPS encryption, Security audit log, Basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE for Open Network Video Interface
Wi-Fi
Transfer Rate: 11b: Up to 54 Mbps, 11g: Up to 54 Mbps, 11n: Up to 150 Mbps
Wi-Fi Protocols: IEEE 802.11b/g/n
Frequency Range: 2.412 GHz to 2.472 GHz
Channel Bandwidth: 20 MHz
Modulation: 802.11b: CCK, QPSK, BPSK, 802.11g: OFDM, 802.11n: OFDM
Wireless Range: Up to 120m (varies based on environment)
Antenna: 2 antennas
Image Settings: Rotate mode, saturation, brightness, contrast, sharpness
Day/Night Switch: Auto, Schedule, Day, Night
Wide Dynamic Range (WDR): Digital WDR
Privacy Mask: 4 programmable polygon privacy masks
Interface
Built-in Microphone: Yes
Built-in Speaker: Yes
On-Board Storage: Supports microSD/microSDHC/microSDXC cards (up to 512GB)
Reset Key: Yes
Ethernet Interface: 1 × RJ45 10M/100M self-adaptive Ethernet port
Event
Basic Events: Motion detection (human and vehicle classification), exception alerts
Linkage Methods: Upload to memory card, notify surveillance centre, trigger capture, audible warning, auto-tracking lite
General
Power Supply: 12V DC ±10%, 1A, max. 10W, Ø 2mm coaxial power plug, reverse polarity protection
Operating Temperature: -30°C to 60°C (-22°F to 140°F), Humidity ≤95% (non-condensing)
Storage Temperature: -30°C to 60°C (-22°F to 140°F), Humidity ≤95% (non-condensing)
Material:Base: Metal, Front Cover: Polycarbonate, Back Cover: Polycarbonate
Dimensions: 12 × 12 × 9.5 cm
Weight: Approx. 593g
Certifications & Compliance
EMC Compliance: CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4:2011+A1:2014)
RF Compliance: CE-RED (EN 301489-1 V2.1.1, EN 301489-17 V3.1.1, EN 300328 V2.1.1, EN 62311:2008)
Safety Compliance: CB (IEC 62368-1: 2014+A11)
CE-LVD (EN 62368-1: 2014/A11:2017)
Environmental Compliance: CE-RoHS (2011/65/EU) WEEE (2012/19/EU)
Protection Rating: IP66 (IEC 60529-2013)
WHAT’S IN THE BOX:
Hikvision Fixed Dome Outdoor Security Camera, 2.8mm Lens, 2MP x1
User Manual x1
| SKU | DS-2CV2121G2-IDW-2.8 |
|---|---|
| Order Lead Time | 1 - 2 Working Days |
| Product Availability | Online Only |
