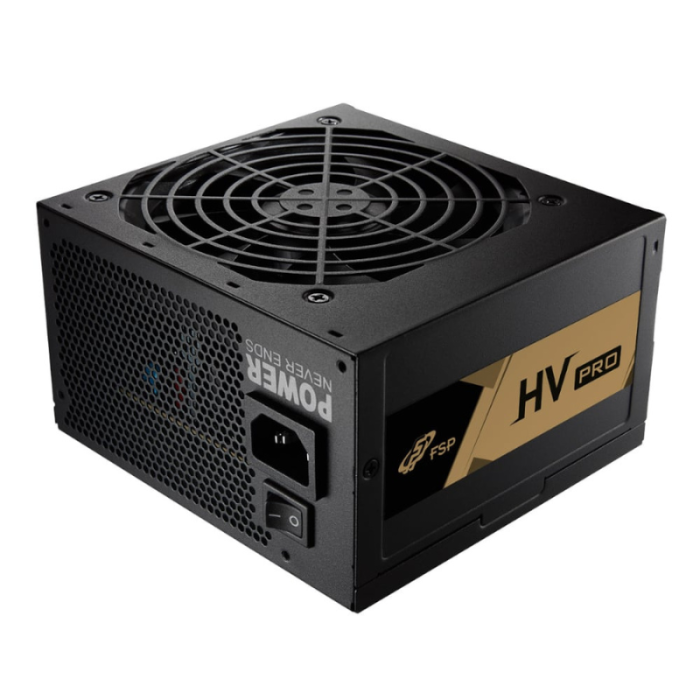

FSP HV Pro 650W Plus Non Modular PSU
FSP HV Pro 650W Plus Non Modular PSU
The FSP HV PRO 650W ATX Non-modular Power Supply offers reliable performance and essential features for powering modern PC builds. Designed to meet ATX12 v2.52 & EPS12 v2.92 standards, this power supply ensures stable and efficient operation, achieving 85% efficiency at typical loads under 230V EU conditions.
Equipped with Active PFC (Power Factor Correction) with a rating of ≥0.9, the HV PRO provides clean and efficient power delivery. Its +12V Single-Rail Design and DC-to-DC Module for +5V and +3.3V voltages ensure consistent and reliable performance for demanding hardware components.
The 120mm silent fan guarantees efficient cooling while maintaining low noise levels, making it ideal for quiet builds. Complete with OCP (Overcurrent), OVP (Overvoltage), OPP (Overpower), and SCP (Short Circuit) protections, the HV PRO ensures the safety of your system during operation.
FEATURES:
Complies with ATX12 v2.52 & EPS12 v2.92
Efficiency 85% at typical Load
Active PFC ≧ 0.9
Hold up time > 17ms at 80% Load
+12V Single-Rail Design
+5V &3.3V DC to DC Module Design
120mm Silent & long life Fan
Complete Protections: OCP/OVP/OPP/SCP
SPECIFICATIONS:
Rated Output Power: 650W
Form Factor: ATX
80 PLUS Certification: 230V EU Standard
Input Voltage: 200-240V
Input Current: 5A
Input Frequency: 50-60Hz
PFC: Active PFC
Efficiency: ≥85% at typical load
Fan Type: Sleeve Fan, 120mm
Protection: OCP, OVP, OPP, SCP
Product Dimensions: 15 x 14 x 8.6 cm
DC Output/Max Output Current/Max Combined Power:
+3.3V/20A/100W
+5V/20A/100W
+12V/54.1A/649.2W
-12V/0.3A/3.6W
+5Vsb/2.5A/12.5W
Connectors:
MB 20+4 x1
4+4 PIN x2
PCI-E 6+2 x2
SATA x4
Molex (PERIPHERAL) x2
Floppy x1
WHAT'S IN THE BOX:
FSP HV PRO 650W ATX Non-modular Power Supply - Black x1
